FEATURES

For mounting heights to 16′ (environmental separation) and 14′ (insect control).

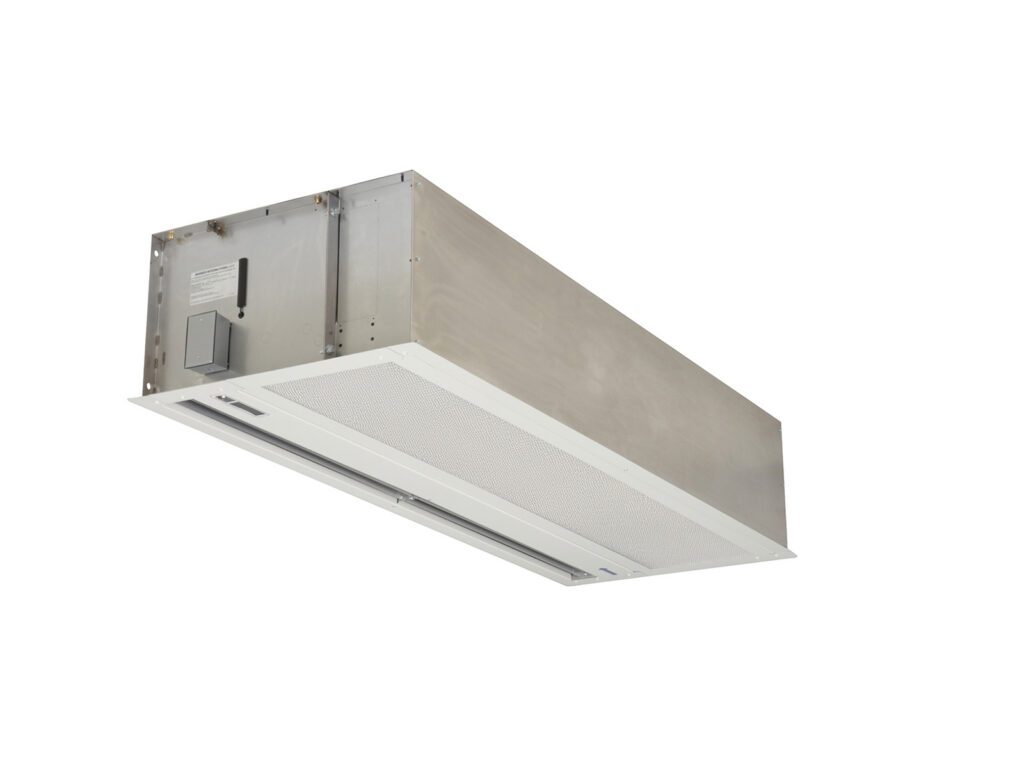

The Berner Architectural Recessed 16 Air Curtain mounts flush with the ceiling with a white aluminum exterior. Chosen by designers who are concerned with both aesthetics and protecting the intent of the space when the door is open.

Standard: Berner’s built-in Intelliswitch™ digital controller
Optional: Berner AIR™ smart controller and app, includes BACnet

  • AMCA certified ambient models only

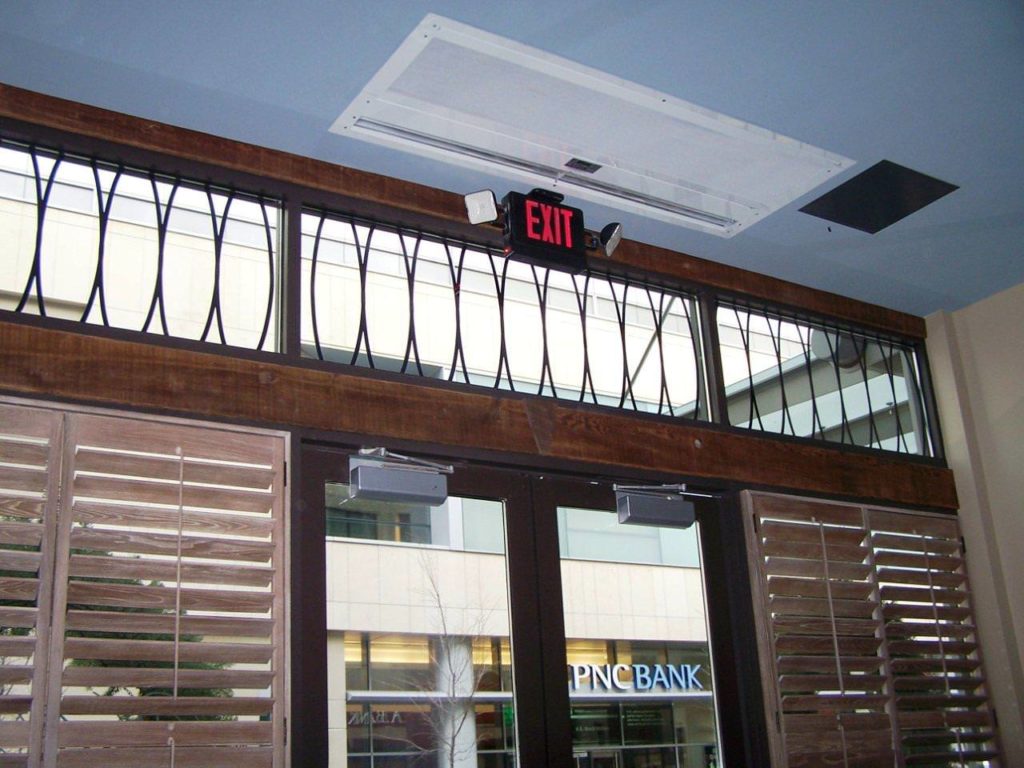

  • Used at entrances to enhance or replace a vestibule to save energy and maintain comfortable interiors
  • Custom colors or stainless steel available.
  • Simple to install, operate, and maintain
  • Made in the U.S.A.

Available in single lengths from 3′ to 12′
Requires a minimum of 15 ¼” clearance above the ceiling

AMBIENT

  • 15″ high x 26″ deep
  • 1 hp motor(s) – two speeds
  • Factory installed Intelliswitch™ digital controller
  • White aluminum exterior panel (optional: custom color, RAL colors 1000 to 9023 only, or stainless)
  • Top mounting only
  • High efficiency, low noise Pro-V Nozzle
  • Filter (washable)
  • Optional: Berner AIR (smart controller & app, includes BACnet)

ELECTRIC HEAT

  • 15″ high x 26″ deep
  • 1 hp motor(s) – two speeds
  • Factory installed Intelliswitch™ digital controller
  • White aluminum exterior panel (optional: custom color, bronze anodized, or stainless)
  • Top mounting only
  • High efficiency, low noise Pro-V Nozzle
  • Filter (washable)
  • Patented venturi open helical element with point suspension
  • Alternate KW available
  • Optional: Berner AIR (smart controller & app, includes BACnet)

STEAM/HOT WATER HEAT

  • 15″ high x 26″ deep
  • 1 hp motor(s) – two speeds
  • Factory installed Intelliswitch™ digital controller
  • White aluminum exterior panel (optional: custom color, bronze anodized, or stainless)
  • Top mounting only
  • High efficiency, low noise Pro-V Nozzle
  • Filter (washable)
  • Optional: Berner AIR (smart controller & app, includes BACnet)
Coil features:
  • Galvanized steel casing
  • 5/8″ copper tube x .035″ wall
  • Aluminum fins
  • Leak tested at 450 psi

Accessories

This model comes with Berner’s digital controller, the Intelliswitch™, built-in and requires a separate activation switch.

Berner Intelliswitch™

Standard
  • Pre-set programs
  • Simple custom programming
  • Two speeds maintained +/- 5 rpm
  • Serial network connection available
  • External thermostat provision
  • Temperature probe (heated units only)
  • Low voltage circuit for unit activation (to connect with a Building Automation System or Automatic Door)
  • Optional: remote mounted Display Kit
  • Optional: handheld Remote Control

Berner AIR™ – Smart Controller & App

STANDARD
  • Enables wireless control of the air curtain(s) via the Berner App
  • Allows Intelliswitch™ to be programmed, operated & monitored via smartphone/tablet
  • Includes BACnet-IP support
  • Secure: best practices for cybersecurity protocols followed

Electrical Accessories

Optional
  • Berner AIR — smart controller & app, includes BACnet
  • Magnetic Reed Door Switch
  • Disconnect Switch(es) – toggle disconnects based on number of power supplies required.
  • Remote Thermostat & Locking Cover
  • Remote Temperature Sensor
  • Serial Connection Cable
