FEATURES

For mounting heights up to 16′ (environmental separation) and 14′ (insect control).

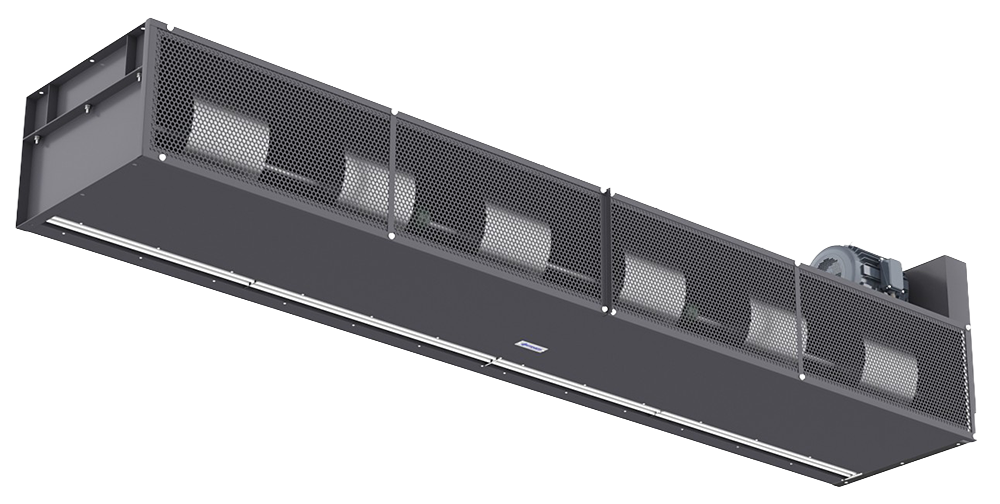

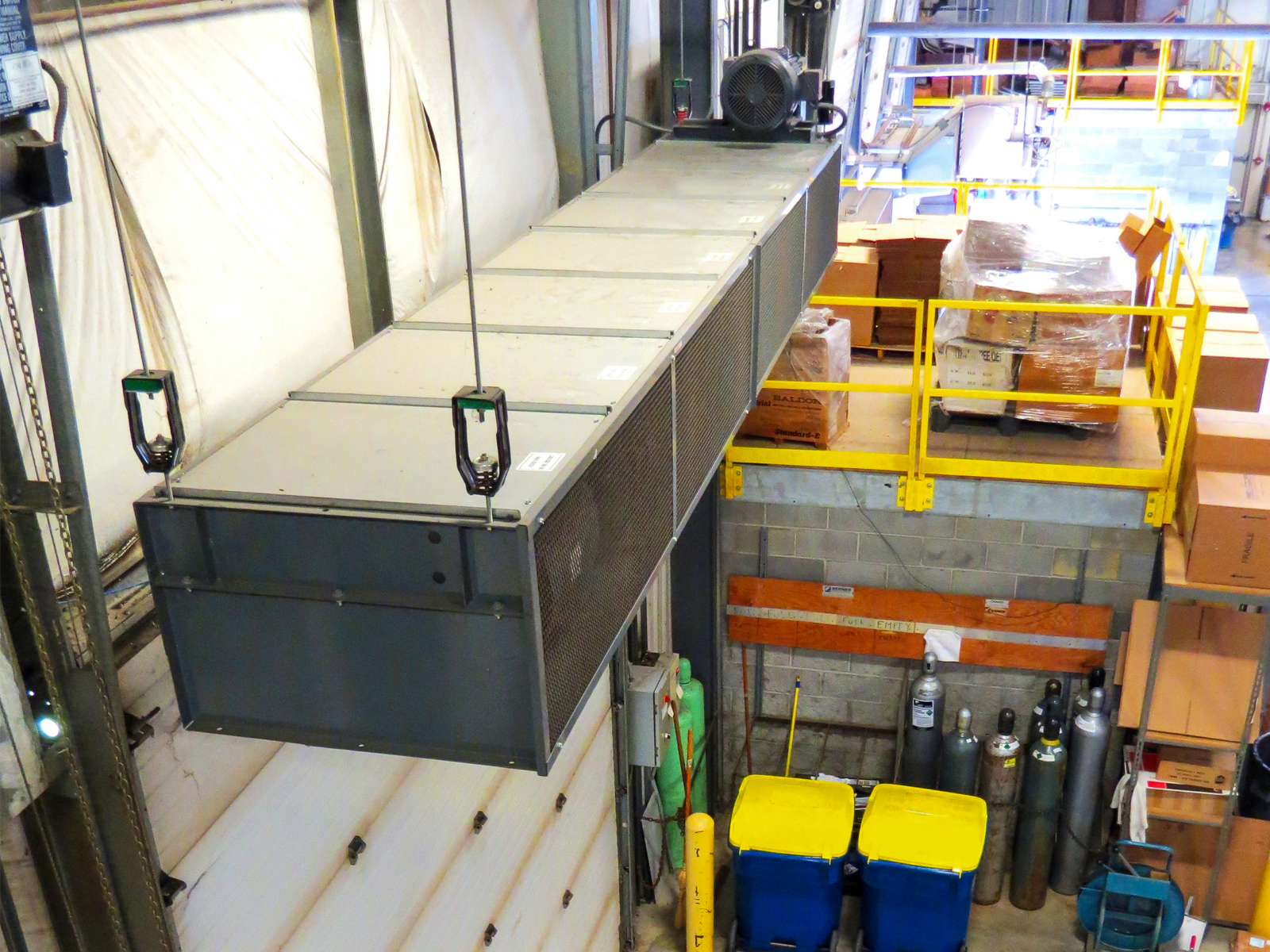

The Berner Industrial Belt Drive 16 Air Curtain has a durable, all welded construction with gray powder-coated aluminized steel exterior and a removable lower section for simplified access to internal components.

Used to save energy and keep temperatures stable and flying insects out when the doors are open.

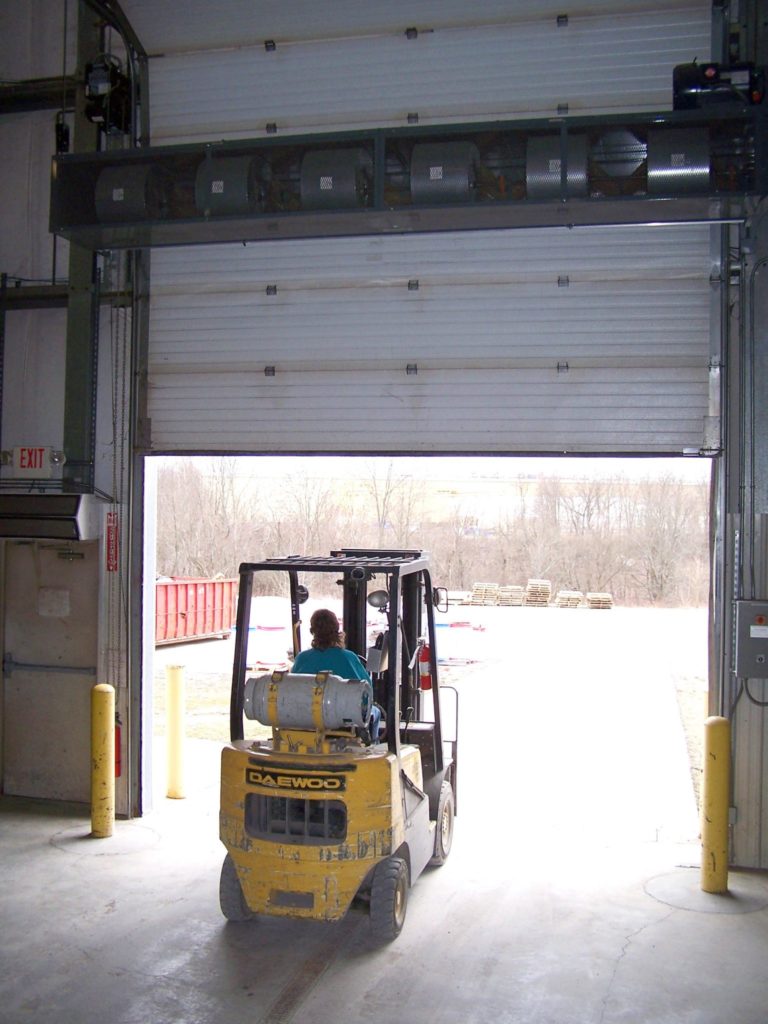

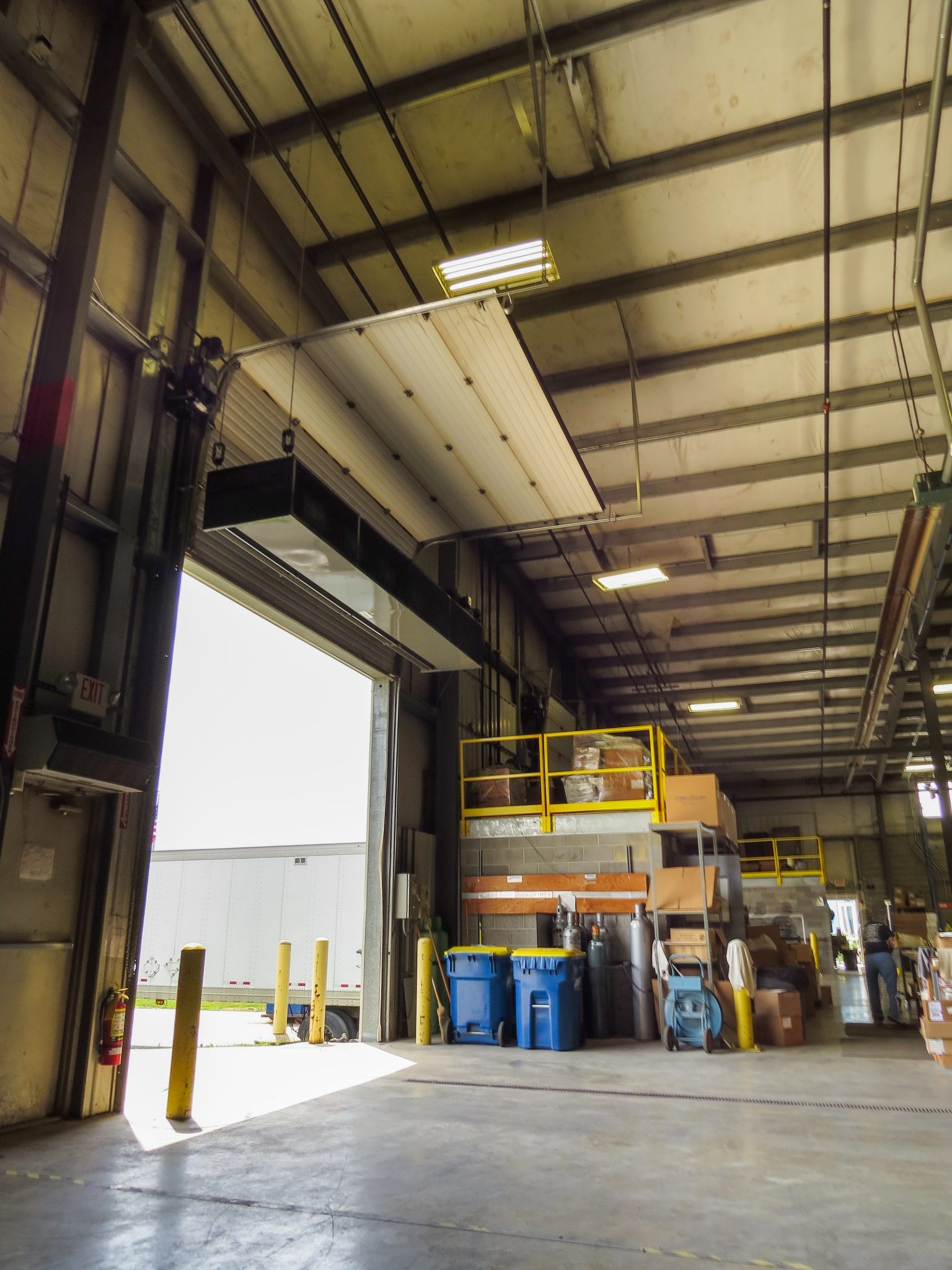

  • Recommended for automotive manufacturing, shipping and receiving doors, and garage doors
  • Engineered to perform and built to last
  • Simple to install, operate, and maintain
  • Made in U.S.A.

Berner is a UL Listed panel shop, authorized to build UL listed Motor Control Panels.

Available in single lengths from 5′ to 16′

AMBIENT

  • 21″ high x 32 ¼” deep
  • Single-speed T.E.F.C. motor — belt drive
  • Gray powder-coated exterior (optional: custom color or stainless)
  • Split cabinet construction for fan assembly removal
  • Removable access panels
  • Top mounting only
  • High efficiency Pro-V Nozzle
  • Motor location top right (optional: top left, front left or front right)

STEAM/HOT WATER HEAT

  • 21″ high x 32 ¼” deep
  • Single-speed T.E.F.C. motor — belt drive
  • Gray powder-coated exterior (optional: custom color or stainless)
  • Split cabinet construction for fan assembly removal
  • Removable access panels
  • Top mounting only
  • High efficiency Pro-V Nozzle
  • Motor location top right (optional: top left, front left or front right)
Coil features:
  • Galvanized steel casing
  • 5/8″ copper tube with .035″ wall
  • Aluminum fins
  • Leak tested at 450 psi

DIRECT GAS HEAT

See mechanical drawings for dimensions.

  • Single-speed T.E.F.C. motor — belt drive
  • Gray powder-coated exterior (optional: custom color or stainless)
  • Split cabinet construction for fan assembly removal
  • Removable access panels
  • Top mounting only
  • High efficiency Pro-V Nozzle
  • Motor location top right (optional: top left, front left or front right)
  • Factory mounted duct transition with bottom access panels
  • Factory mounted modulating direct-fired heater with FM/IRI gas train
    • Factory mounted wired heater control cabinet
    • Steel cabinet with gray finish
    • Spark ignited intermittent pilot

POSITIVE INDIRECT GAS HEAT

See mechanical drawings for dimensions.

  • Single-speed T.E.F.C. motor — belt drive
  • Gray powder-coated exterior (optional: custom color or stainless)
  • Split cabinet construction for fan assembly removal
  • Removable access panels
  • Top mounting only
  • High efficiency Pro-V Nozzle
  • Motor location top right (optional: top left)
  • Factory mounted duct transition with bottom access panels
  • Field installed CSA Certified indirect gas heater(s):
    • Aluminized steel heat exchanger (optional: stainless)
    • Steel cabinet with beige finish
    • Spark ignited pilot
    • Power venter
    • Separate 120V power supply required (optional: transformer for single point connection)

Intelliswitch

Intelliswitch for Industrial Series Air Curtains

Optional

  • The Intelliswitch (digital controller) allows the user to program the air curtain to run for a set time in between door cycles, to operate on a schedule, and for air curtains with heat – to run until the thermostat set point is satisfied, and more..
  • Several pre-set programs to choose from or create one tailored to the application
Berner AIR and Intelliswitch Package

Optional

  • Includes BACnet-IP Support
  • Program, operate & monitor Industrial Air Curtains via Berner’s mobile app
  • Access reporting on energy & cost savings, door operations, and more

Accessories

This model requires an Activation Switch and a Control Panel.

Control Panels

Three Phase Control Panels:

All three phase power supplies require a three phase control panel, remote (standard) or factory mounted, and an activation switch.

Standard control panel construction: NEMA 4/12 Enclosure, Motor Contactor (factory wired), Terminal Strip, Motor Overload (one per motor), and 120V Control Transformer

Optional control panel enclosure constructions: Poly Fiberglass, Aluminum, Stainless Steel

  • Door Switches: roller, plunger, whisker arm, or heavy duty magnetic reed style
  • Hand/Off/Automatic Switches
  • Start/Stop Push Button(s)
  • Summer/Winter Switches
  • Summer/Off/Winter Switches
  • Disconnect Switch(es) – toggle disconnects based on number of power supplies required
  • Remote Thermostat & Locking Cover
  • Time Delay (standard in Indirect Gas Fired control panel)

Electrical Accessories

  • Indirect Gas Heater Transformer

Mechanical Accessories

  • Wall support brackets
  • Extension brackets
  • Vertical tandem mounting bracket
  • 2” Washable aluminum filters with frame, for ambient, steam & hot water heated air curtains only

Direct Gas Heat Accessories

  • 10#-20# First stage gas pressure regulator – factory piped to gas train
  • Ford gas train per SN 9728 with Dungs VDK
  • Vertical burner box (top air inlet)
  • Honeywell flame safety RM7896C1010 in lieu of Fireye
  • Eaton 8411K13 remote flame failure reset switch and MED3 Board

Berner IntelliswitchTM

Digital Controller

  • Takes the place of Control Packages
  • Simplified pre-set programs
  • Single speed motor operation
  • LED clock display
  • Low voltage circuit for unit activation
  • Serial network connection available
  • External thermostat provision
  • Commercial grade components with operating range: 0° – 70°C or 32° – 158°F
  • RoHS compliant
  • Temperature probe (heated units only)
CONTROL PANEL is required when an Intelliswitch is used

Berner AIRTM Smart Controller & Berner App, includes BACnet

  • Requires IntelliswitchTM
  • Program, operate & monitor via smartphone / tablet
  • BACnet-IP support
  • Remote troubleshooting
  • Secure: best practices for cyber security protocols followed

NOTE: Requires on-site, secure wireless connection (provided by others).
