FEATURES
For mounting heights to 7′ (insect control).

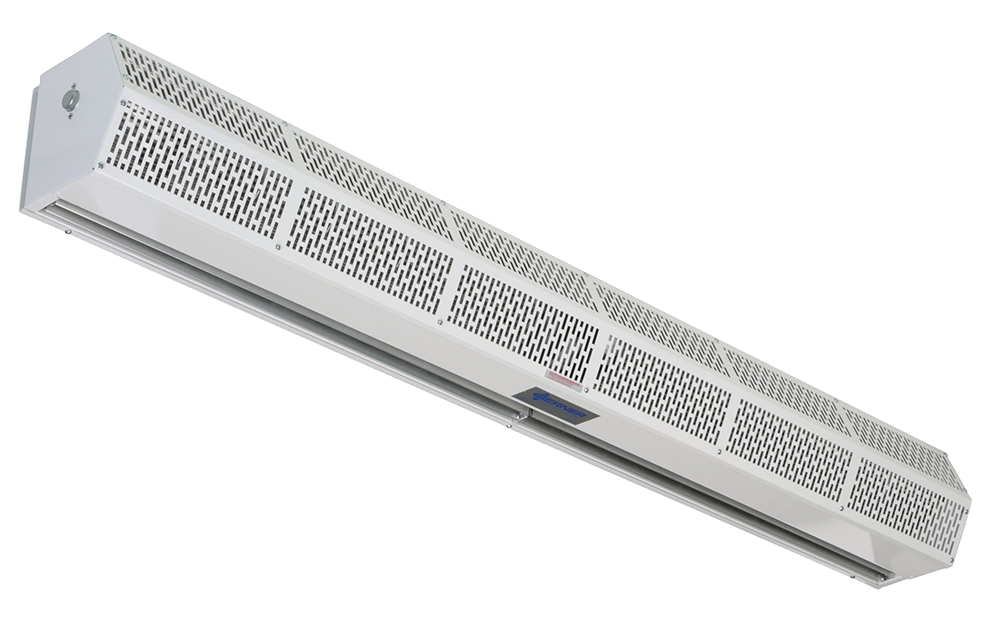

The Berner Sanitation Certified Low Profile 7 Air Curtain is chosen by restaurants and kitchen designers who are concerned with meeting food service standards, health department requirements, and their own criteria for flying insect control when the door is open.
EPH Listed to ANSI/NSF-37. Low profile air curtain with white or black powder-coated cabinet.
- Recommended for service and kitchen entries
- Custom colors or stainless steel available
- Simple to install, operate, and maintain
- Made in U.S.A.
Available in single lengths from 3′ to 10′
Requires a minimum of 9.5″ clearance above the door
AMBIENT
- EPH Listed per NSF 37
- 8 ½” high x 8 ½” deep
- ⅕ hp single-speed motor(s)

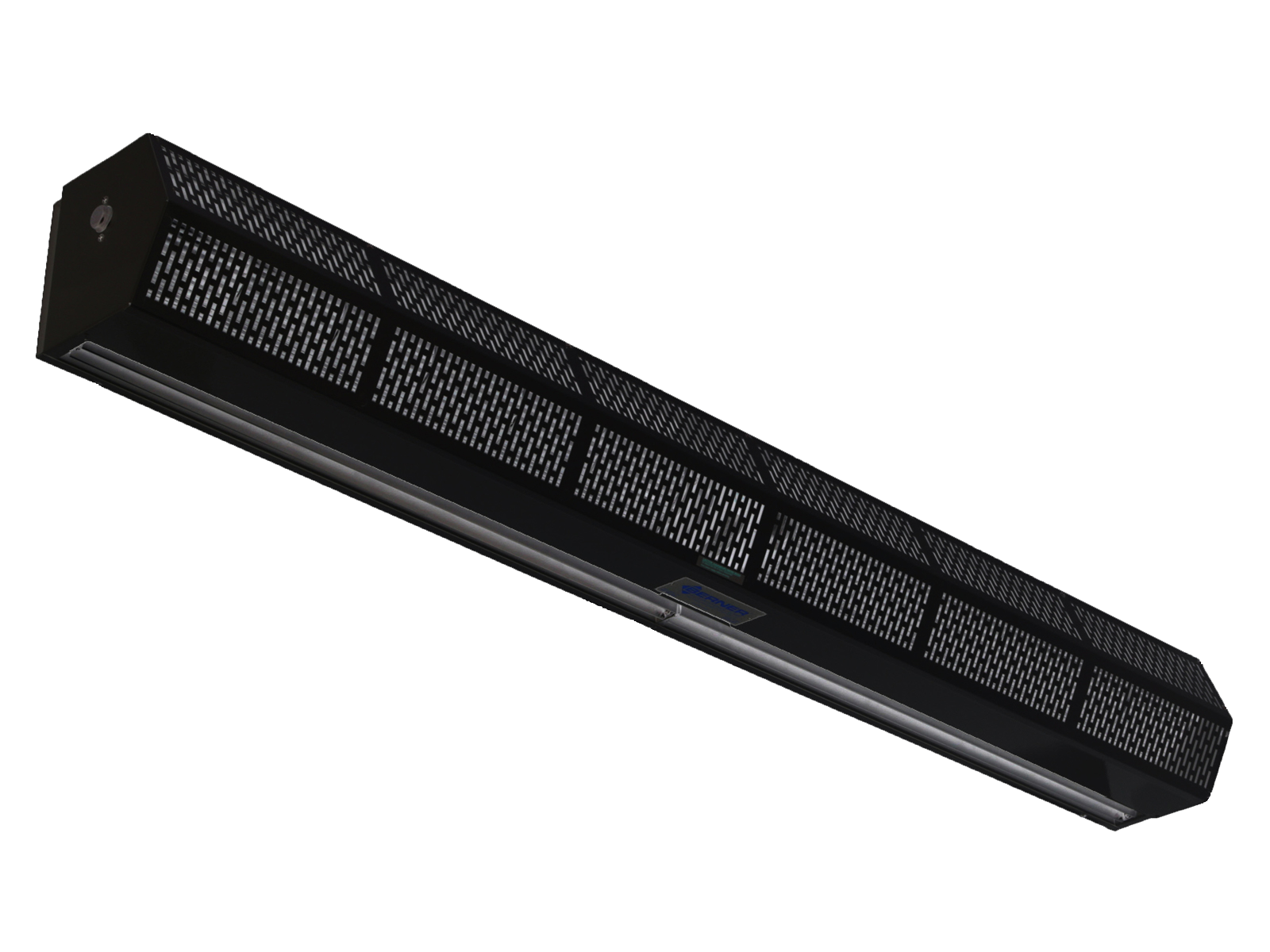

- White or black powder-coated exterior (optional: custom color — RAL colors 1000 to 9023 only — or stainless steel)
- Wall and top mounting

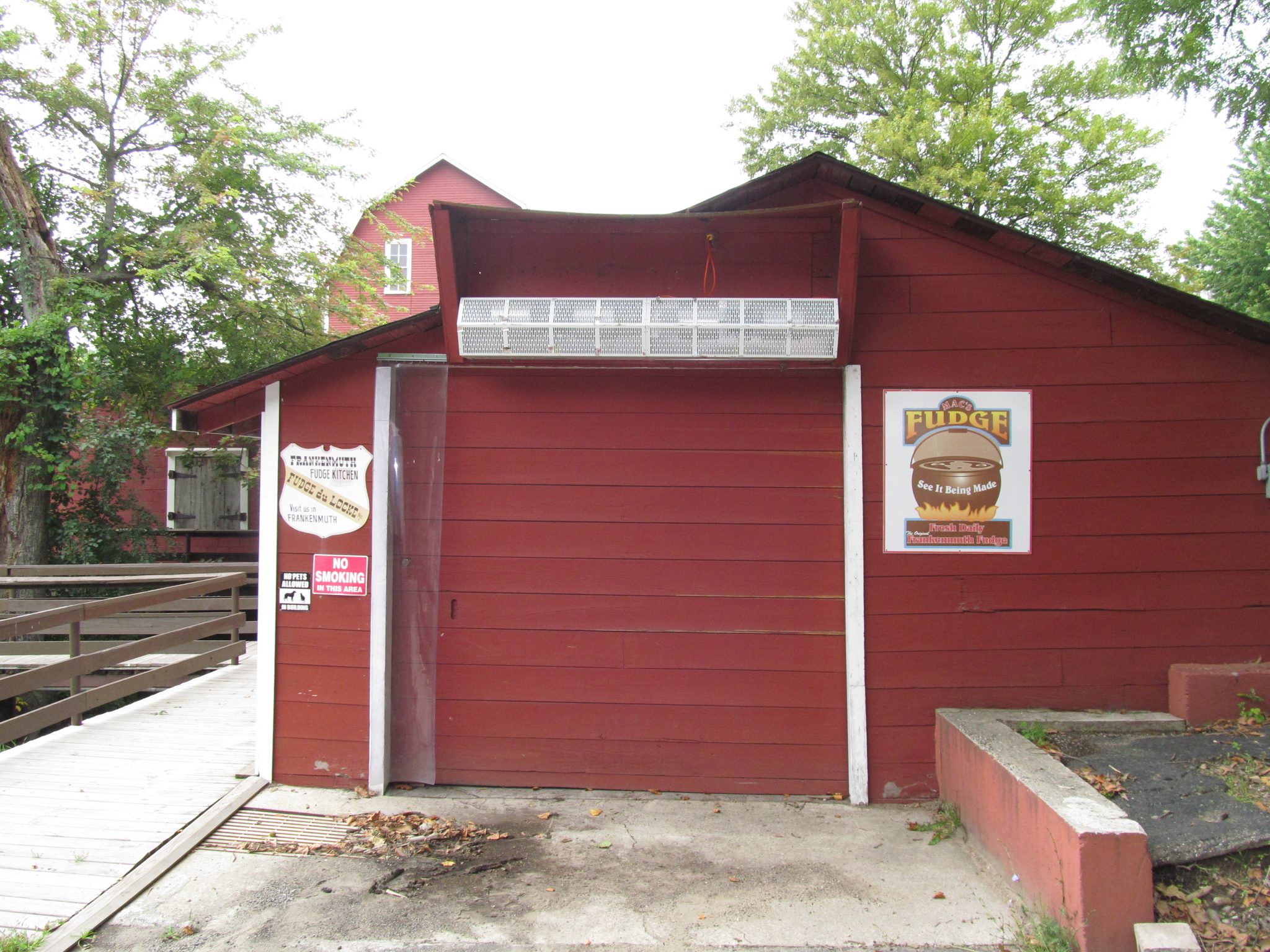

- UL Listed for Outdoor Use
Accessories
This model requires a separate Activation Switch.
Basic Control Package
Recommended for openings where the door stays open for an extended period or does not have a lot of traffic.
- Air curtain turns on when door is opened and shuts off when door is closed.
- Consists of a door switch (roller, plunger, or magnetic reed style) and line voltage, 24 volt control, or 120 volt control
Deluxe Control Package
Recommended for high traffic openings.
- Air curtain turns on when door is opened, when the door closes, the unit remains on until set delay time expires.
- Consists of a door switch (roller, plunger, or magnetic reed style), a time delay, and line voltage or 24 volt control.
Walk-In Cooler Kit
Recommended for walk-in coolers to make installation simpler.
- Combines a Basic Control Package with a white powder coated or stainless steel box to simplify adding an air curtain to a walk-in cooler and other door types.
Berner offers an Automation Control Package version of the Basic and Deluxe Control Packages, these allow the air curtain to interact with Building Automation Systems (BAS) or Automatic Door Controllers to turn on or off.
Electrical Accessories
- Disconnect Switch(es) – toggle disconnect, remote mounted
- 3′ Cord and Plug
Mechanical Accessories
- Adjustable depth Z wall bracket
- Tandem wall mounting bracket
- Tandem mount performance kit
- Transom wall brackets
- Tamper Resistant Correctional Package
