Key Features

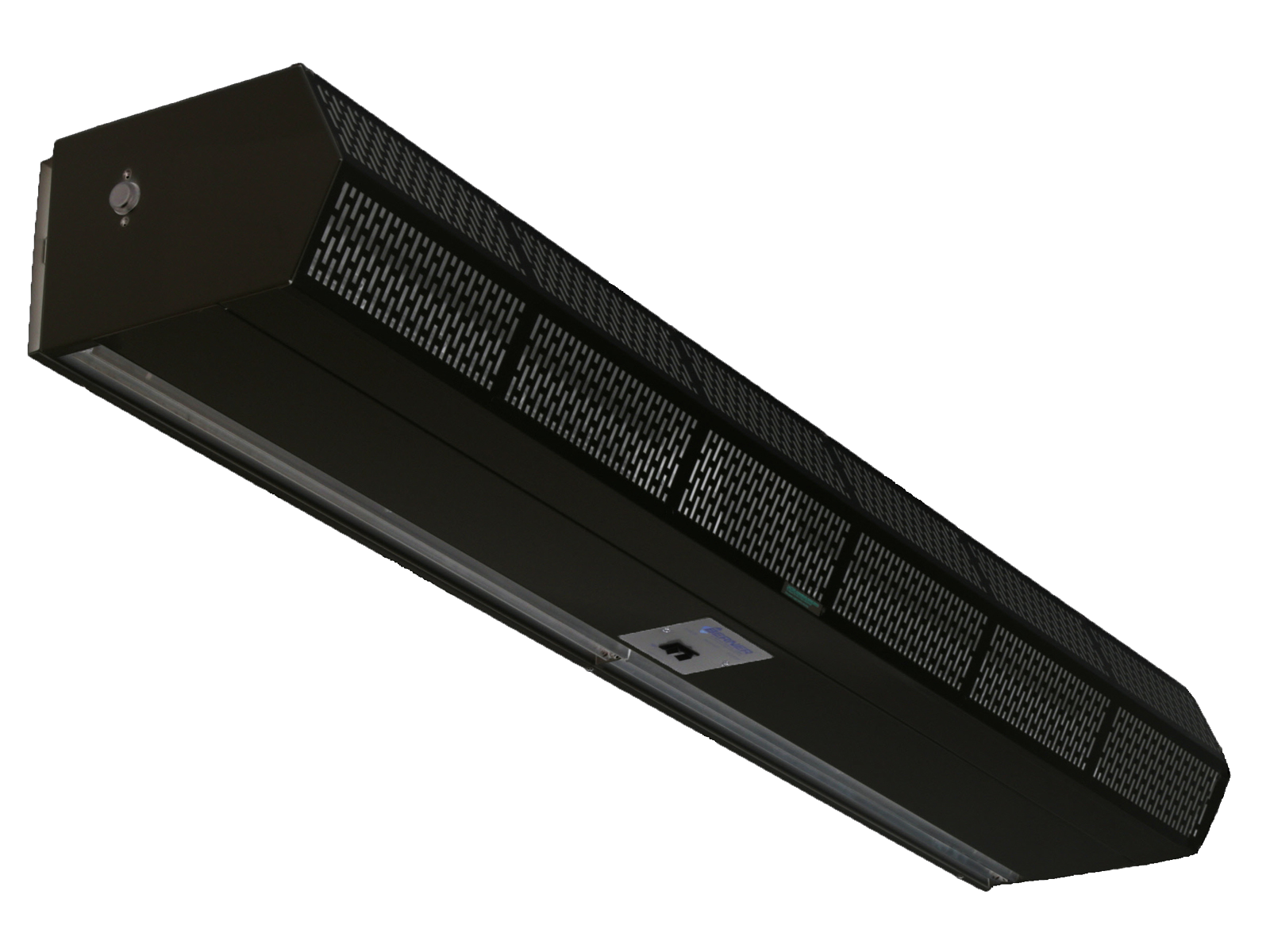

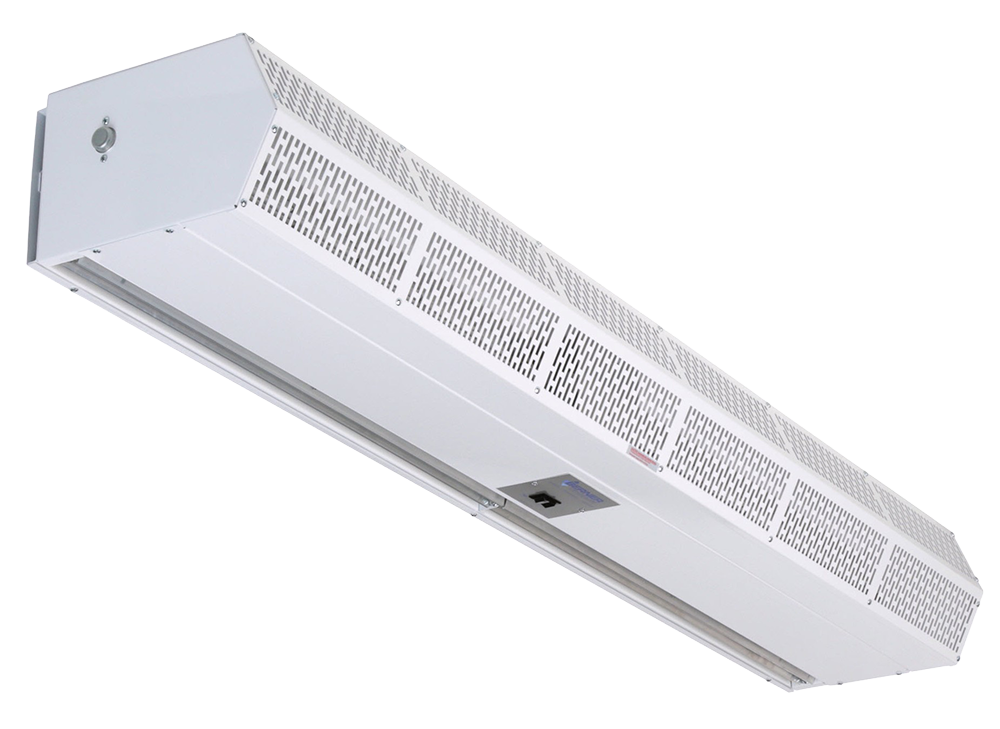

• White or black powder-coated cabinet designed to meet functional needs and integrate into the space.
• Recommended for main entrances and indoor/outdoor bars with restricted clearance above the opening.
• Effective over walk-in coolers to reduce compressor run-times, save energy costs, improve food safety, and help protect against food spoilage.

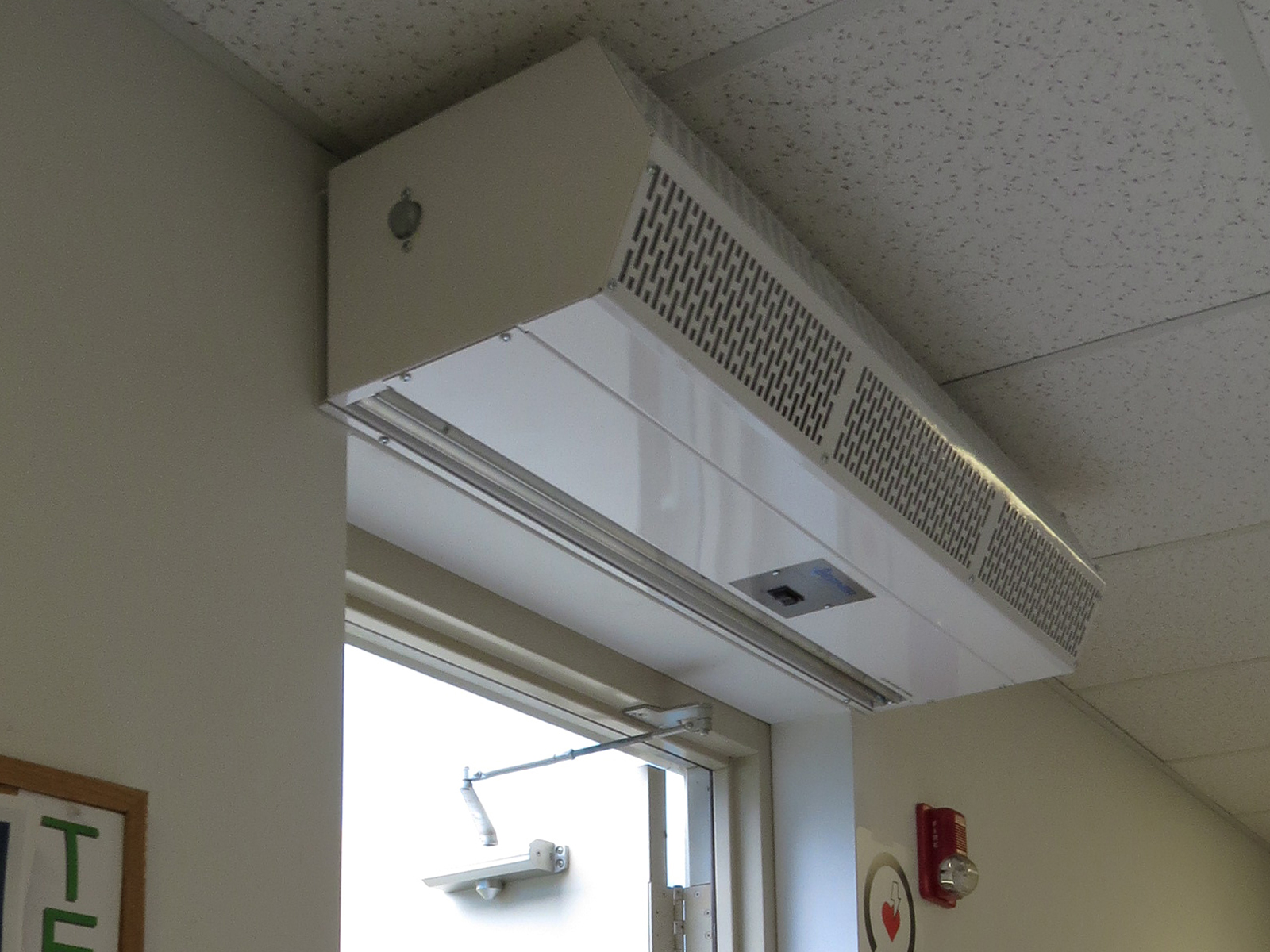

• Used at service and main entrances, concession windows, booth windows, and walk-in coolers.
• Custom colors or stainless steel available.
• Simple to install, operate, and maintain.
• Made in the U.S.A.

Specs & Mounting

• Mounting heights: up to 8 ft. for environmental separation and 7 ft. for insect control.
• Available in single lengths from 2.5 ft. to 10 ft.
• Requires a minimum of 9.5 in. clearance above the door.

• 8 1/2” high x 13 1/2” deep
• 1/5 hp two speed motor(s)
• Factory installed fan speed switch
• White or black powder coated exterior (Optional: Custom Color (RAL colors 1000 to 9023 only) or Stainless Steel)
• Wall & Top Mounting
• 5 Year Limited Warranty
• Optional: Filter (washable)

• 8 1/2” high x 13 1/2” deep
• 1/5 hp two speed motor(s)
• Factory installed fan speed/heat switch
• White or black powder coated exterior (Optional: Custom Color or Stainless)
• Wall & Top Mounting
• Open helical element with point suspension
  • Thermal overload protection
  • Galvanized steel frame
• Alternate kWs available
• 2 Year Limited Warranty

• 8 1/2” high x 13 1/2” deep
• 1/5 hp two speed motor(s)
• Factory installed fan speed/heat switch
• White or black powder coated exterior (Optional: Custom Color or Stainless)
• Wall & Top Mounting
• 2 Year Limited Warranty
• Optional: Filter (washable)

Coil Features:

• Galvanized steel casing
• 5/8″ copper tube X .035″ wall
• Aluminum fins
• Leak tested at 450 PSI

Basic Control Package

Recommended for openings where the door stays open for an extended period or does not have a lot of traffic.

• Air curtain turns on when door is opened and shuts off when door is closed.
• Consists of a door switch (roller, plunger, or magnetic reed style) and line voltage, 24 volt control, or 120 volt control

Deluxe Control Package

Recommended for high traffic openings.

• Air curtain turns on when door is opened, when the door closes, the unit remains on until set delay time expires.
• Consists of a door switch (roller, plunger, or magnetic reed style), a time delay, and line voltage or 24 volt control.

Berner offers an Automation Control Package version of the Basic and Deluxe Control Packages, these allow the air curtain to interact with Building Automation Systems (BAS) or Automatic Door Controllers to turn on or off.

Electrical Accessories:

• Two speed selector switches, remote mounted
• Hand/Off/Automatic switches, remote mounted
• Disconnect Switch(es) – toggle disconnects based on number of power supplies required.
• Remote Thermostat & Locking Cover
• Remote Temperature Sensor

Mechanical Accessories:

• Adjustable depth Z wall bracket
• Tandem wall mounting bracket
• Tandem mount performance kit
• Transom wall brackets
• Tamper Resistant Correctional Facility Package
