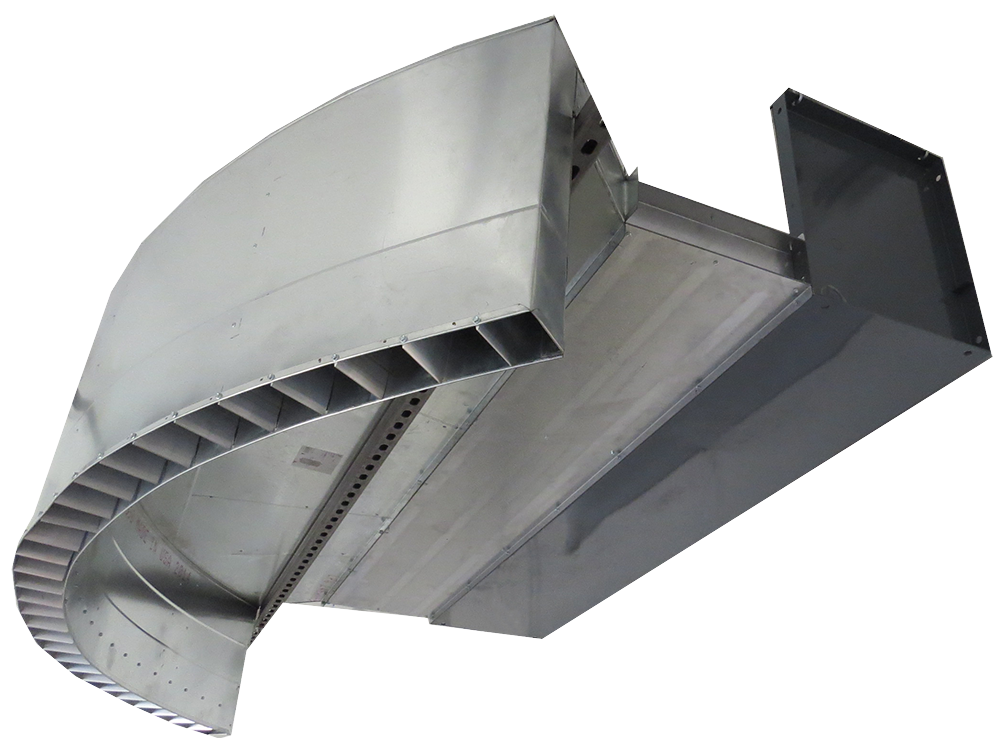

The Berner RevolvAir

Air Curtain System for Revolving Doors

Taking the Revolving Door to a whole new level

Meet the expectation that occupants can comfortably socialize, work, and hang out in the lobby regardless of the season.

Revolving doors significantly reduce a building’s energy consumption. However, the revolving door acts as an air lock, bringing in people, and also outside temperatures and fumes, into the lobby. In climates with temperature extremes, adding the RevolvAir over the revolving door works to negate the airlock effect. This keeps the lobby comfortable for those spending time in it, and further reduces the building’s overall energy consumption.

To work with Berner Engineering on your main entrance, contact either your Berner Representative or Berner directly – 800-245-4455.

Request a Quote

Discharge & Transom Plenum

  • Sized according to revolving door radius & opening width
  • Sky white powder coated exterior
  • Customized trim packages available
  • Aluminum airfoil vanes for smooth air flow

Air Curtain

  • 18” high x 15” deep
  • ½ hp motor(s) – ten speeds
  • Factory installed IntelliswitchTM digital controller
  • Factory mounted UL listed control panel
  • Sky white powder coated exterior, screen and access panels
  • High efficiency Pro-V Nozzle
  • cUL Listed
  • Optional: Wi-Fi Controller, works with the Berner App

Discharge & Transom Plenum

  • Sized according to revolving door radius & opening width
  • Sky white powder coated exterior
  • Customized trim packages available
  • Aluminum airfoil vanes for smooth air flow

Air Curtain

  • 18” high x 15” deep
  • ½ hp motor(s) – ten speeds
  • Factory installed IntelliswitchTM digital controller
  • Factory mounted UL listed control panel
  • Sky white powder coated exterior, screen and access panels
  • High efficiency Pro-V Nozzle
  • Patented venturi open helical element with point suspension
  • Alternate KW available
  • cUL Listed
  • Optional: Wi-Fi Controller, works with the Berner App

Discharge & Transom Plenum

  • Sized according to revolving door radius & opening width
  • Sky white powder coated exterior
  • Customized trim packages available
  • Aluminum airfoil vanes for smooth air flow

Air Curtain

  • 18” high x 15” deep
  • ½ hp motor(s) – ten speeds
  • Factory installed IntelliswitchTM digital controller
  • Factory mounted UL listed control panel
  • Sky white powder coated exterior, screen and access panels
  • High efficiency Pro-V Nozzle
  • Coil features:
    • Galvanized steel casing
    • 5/8″ copper tube with .035″ wall
    • Aluminum fins
    • Leak tested at 450 psi
  • cUL Listed
  • Optional: Wi-Fi Controller, works with the Berner App

This system comes with Berner’s digital controller, the Intelliswitch™, built-in and requires a separate activation switch.

Berner Intelliswitch™ – Standard:

  • Pre-set programs
  • Simple custom programming
  • Ten speeds maintained +/- 5 rpm
  • Serial network connection available
  • External thermostat provision
  • Temperature probe (heated units only)
  • Low voltage circuit for unit activation (to connect with a Building Automation System or Automatic Door)
  • Optional: remote mounted Display Kit
  • Optional: handheld Remote Control

Electrical Accessories – Optional:

  • Motion Sensor
  • Wi-Fi Controller, works with the Berner App for Android phones
  • Disconnect Switch(es) – toggle disconnects based on number of power supplies required.
  • Remote Thermostat & Locking Cover
  • Remote Temperature Sensor
  • Serial Connection Cable

Mechanical Accessories – Optional:

  • 1” Aluminum washable Air Inlet Filter – Factory mounted

For details, contact your Berner Representative
