FEATURES
For mounting heights to 7′ (insect control).

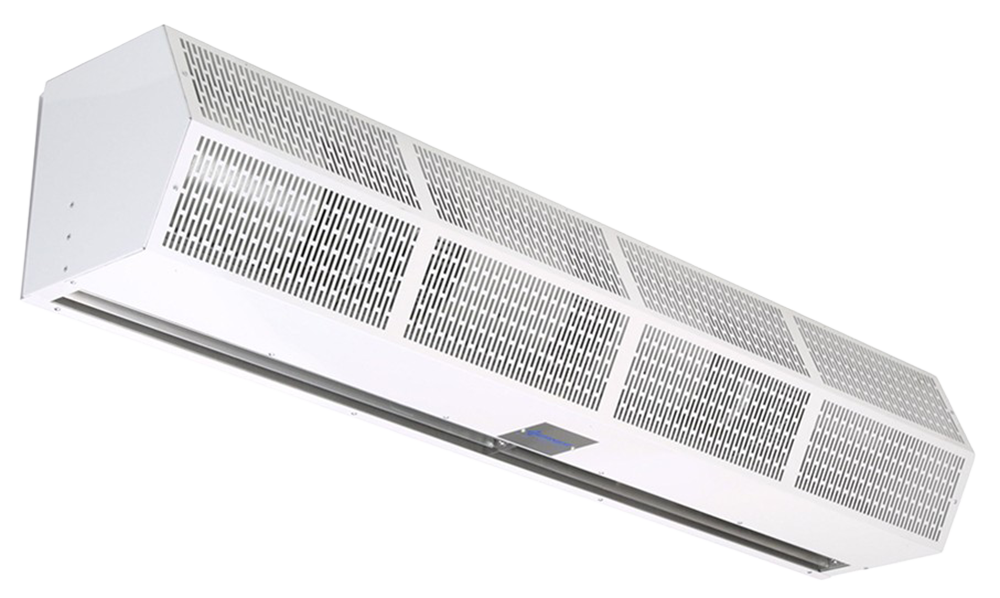

The Berner Sanitation Certified High Performance 7 Air Curtain is chosen by restaurants and kitchen designers who are concerned with meeting food service standards, health department requirements, and their own criteria for flying insect control when the door is open.
Suitable for outdoor mounting and EPH Listed to ANSI/NSF-37. Single-speed, high-performance, white or black powder-coated exterior.
- AMCA certified

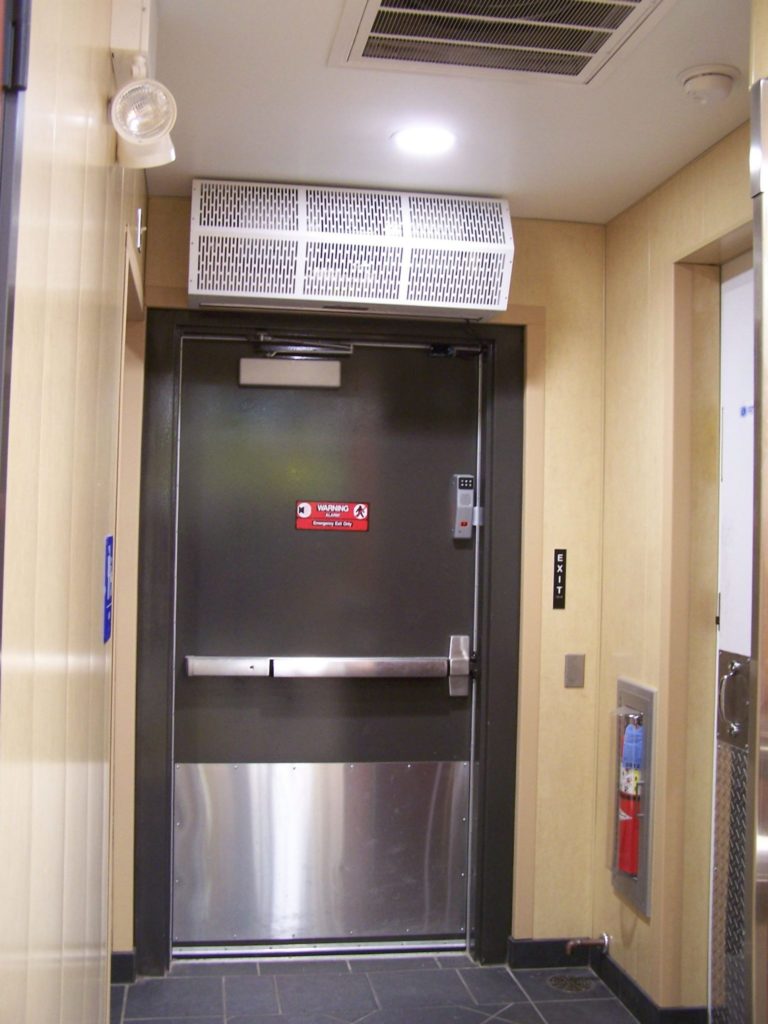

- Recommended for service and kitchen entries
- Simple to install, operate, and maintain
- Made in U.S.A.
Available in single lengths from 3′ to 10′
AMBIENT
- EPH Listed per NSF 37
- 14″ high x 15″ deep
- ¾ hp single-speed motor(s)

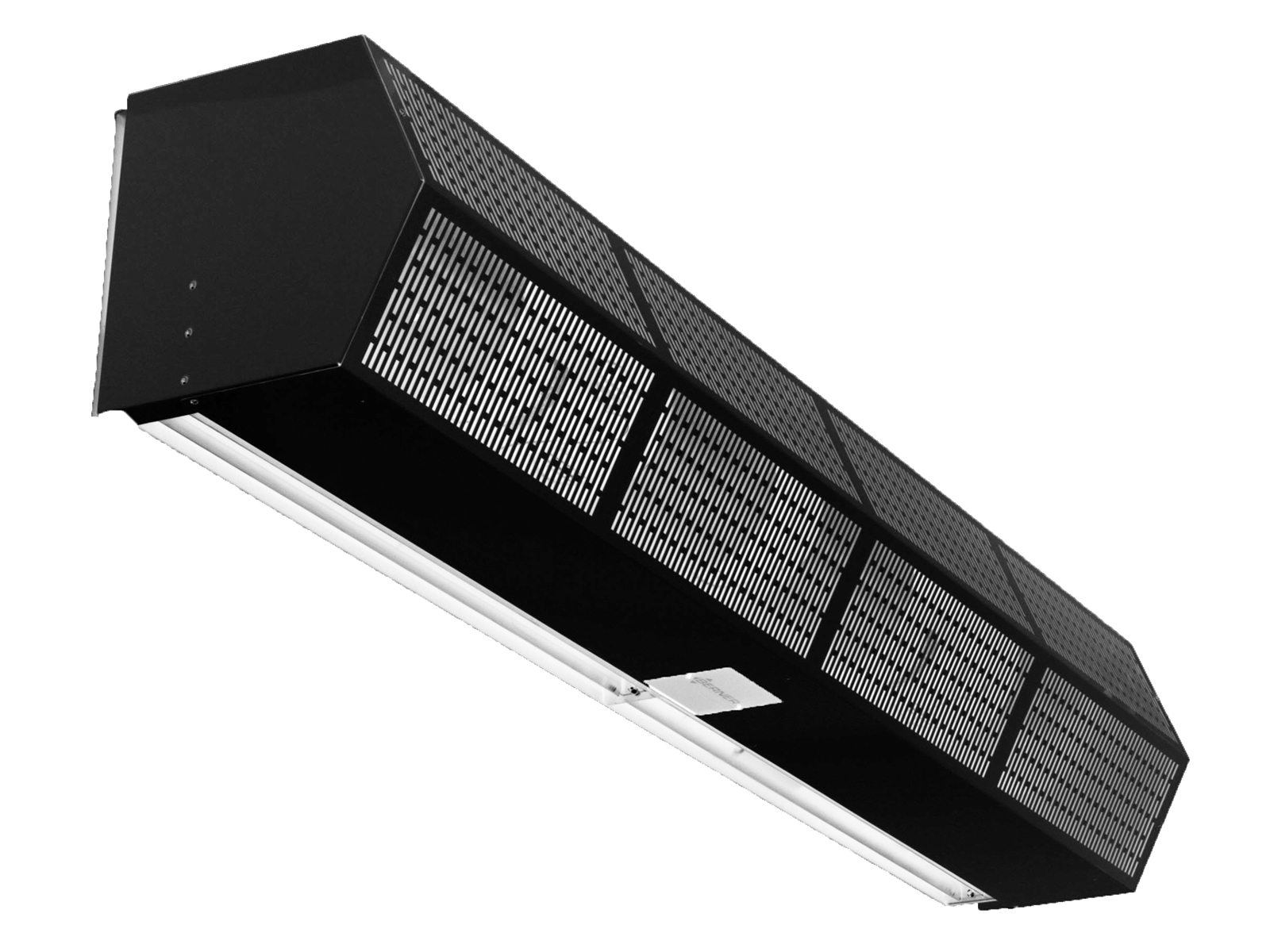

- White or black aluminum exterior cover
- Wall and top mounting
- UL Listed for Outdoor Use
Accessories
This model requires a separate Activation Switch.
Basic Control Package
Recommended for openings where the door stays open for an extended period or does not have a lot of traffic.
- Air curtain turns on when door is opened and shuts off when door is closed.
- Consists of a door switch (roller, plunger, or magnetic reed style) and line voltage or 24 volt control
Deluxe Control Package
Recommended for high traffic openings.
- Air curtain turns on when door is opened, when the door closes, the unit remains on until set delay time expires.
- Consists of a door switch (roller, plunger, or magnetic reed style), a time delay, and line voltage or 24 volt control.
Berner offers an Automation Control Package version of the Basic and Deluxe Control Packages, these allow the air curtain to interact with Building Automation Systems (BAS) or Automatic Door Controllers to turn on or off.
Electrical Accessories
- Single speed selector switches
- Hand/Off/Automatic switches, remote mounted
- Disconnect Switch(es) – toggle disconnect, remote mounted
Mechanical Accessories
- Wall mounting plate
- Top mounting bracket
- Tamper Resistant Correctional Package
