FEATURES
For mounting heights to 10′ (environmental separation) and 8′ (insect control).

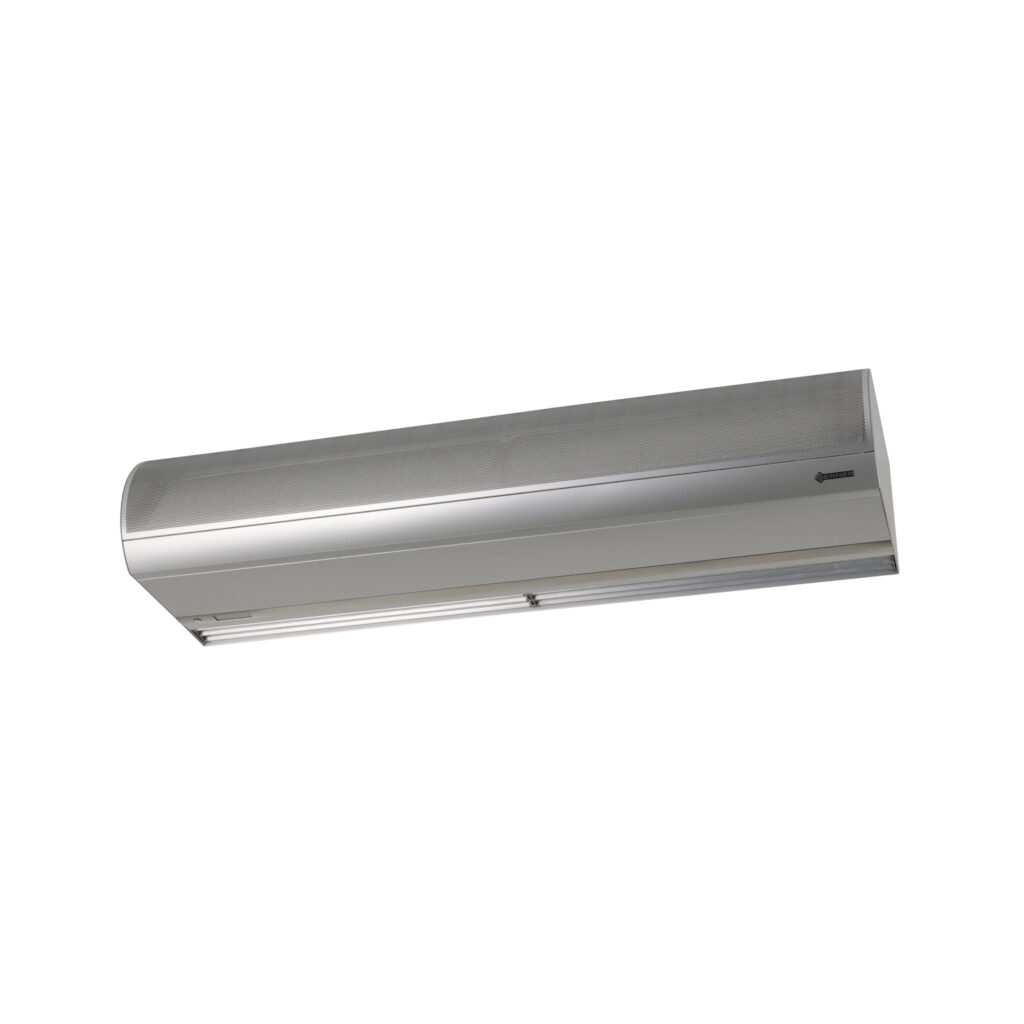

An elegant refresh of Berner’s classic air curtain shape, the Berner Architectural Icon 10 Air Curtain is low-key, versatile & functional.
- Meets ASHRAE Standard 90.1-2019 and the IECC building code which allows AMCA certified air curtains as an alternative to vestibules
- Custom Colors or Stainless Steel available
- Simple to install, operate, and maintain
- Made in the U.S.A.
Chosen by designers who are concerned with both aesthetics and protecting the intent of the space when the door is open, these air curtains are AMCA certified for all heat offerings.
Standard: Berner’s built-in Intelliswitch™ digital controller
Optional: Berner AIR™ smart controller and app, includes BACnet
Available in single lengths from 3’ to 12’
AMBIENT
Standard Construction
- 12 ¾” high x 22” deep
- 1/2 hp motor(s) – ten speeds
- Factory installed Intelliswitch™ digital controller
- Clear satin anodized aluminum exterior
- Wall or Top Mounting
- High efficiency, low noise, articulating, three vane, Pro-V Nozzle
- Filter (washable)
Options
- 1/2 hp EC motor(s) – ten speeds
- Custom Color or Stainless
- Rear cover for top mounting to conceal fasteners
- Berner AIR™ (smart controller & app, includes BACnet)
ELECTRIC HEAT
Standard Construction
- 12 ¾” high x 22” deep
- 1/2 hp motor(s) – ten speeds
- Factory installed Intelliswitch™ digital controller
- Clear satin anodized aluminum exterior
- Wall or Top Mounting
- High efficiency, low noise, articulating, three vane, Pro-V Nozzle
- Filter (washable)
Options
- 1/2 hp EC motor(s) – ten speeds
- Custom Color or Stainless
- Rear cover for top mounting to conceal fasteners
- Berner AIR™ (smart controller & app, includes BACnet)
STEAM/HOT WATER HEAT
Standard Construction
- 12 ¾” high x 22” deep
- 1/2 hp motor(s) – ten speeds
- Factory installed Intelliswitch™ digital controller
- Clear satin anodized aluminum exterior
- Wall or Top Mounting
- High efficiency, low noise, articulating, three vane, Pro-V Nozzle
- Filter (washable)
Options
- 1/2 hp EC motor(s) – ten speeds
- Custom Color or Stainless
- Rear cover for top mounting to conceal fasteners
- Berner AIR™ (smart controller & app, includes BACnet)
Coil features
- Galvanized steel casing
- ⅝” copper tube x .035″ wall
- Aluminum fins
- Leak tested at 450 psi
Accessories
Comes with Berner’s digital controller, the Intelliswitch™, built-in as standard. Requires a separate activation switch.
Berner Intelliswitch™
Standard on all Architectural Series Digital Controller
- Ten speeds maintained +/- 5 rpm, utilizes feedback
- Full speed start
- LED clock display
- Low voltage circuit for unit activation
- Serial Network Connection available
- External thermostat provision
- Comfort Plus provisionCommercial grade components with operating range: 0° – 70° C or 32° – 158° F
- RoHS compliant
- Thermostat Probe (heated units only)
- Works with Berner AIR™ (Smart Controller & App)
Berner AIR™ the Architectural Icon 8 Smart Controller & Berner App
Standard
- Enables wireless control of the air curtain(s) via the Berner App
- Allows Intelliswitch™ to be programmed, operated & monitored via smart phone / tablet
- Includes weather based adaptive setting & BACnet-IP support
- Allows for grouping (programming multiple air curtains)Includes performance reports via www.BernerAIRConsole.com
- Secure: best practices for cyber security protocols followed
NOTE: Requires on-site, secure wireless connection (provided by others). To “group” program, each air curtain requires the Berner AIR.
Mechanical Accessories
Standard
- Wall Mounting Bracket
- Washable Filters
Optional
- Decorative Rear Adaptor – used when the backside of the air curtain will be visible
- Transom Bracket – used when there is a glass transom to mount the air curtain to the mullions
- Nozzle Extensions – used for above the ceiling installation.
Electrical Accessories
Optional
- Berner AIR™ (smart controller & app, includes BACnet)
- Magnetic Reed Door Switch
- Touchscreen, Wall Mounted Tablet
- Disconnect Switch(es) – toggle disconnects based on number of power supplies required.
- Remote Thermostat & Locking Cover
- Remote Temperature Sensor
- Serial Connection Cable
