FEATURES

For mounting heights to 6′.

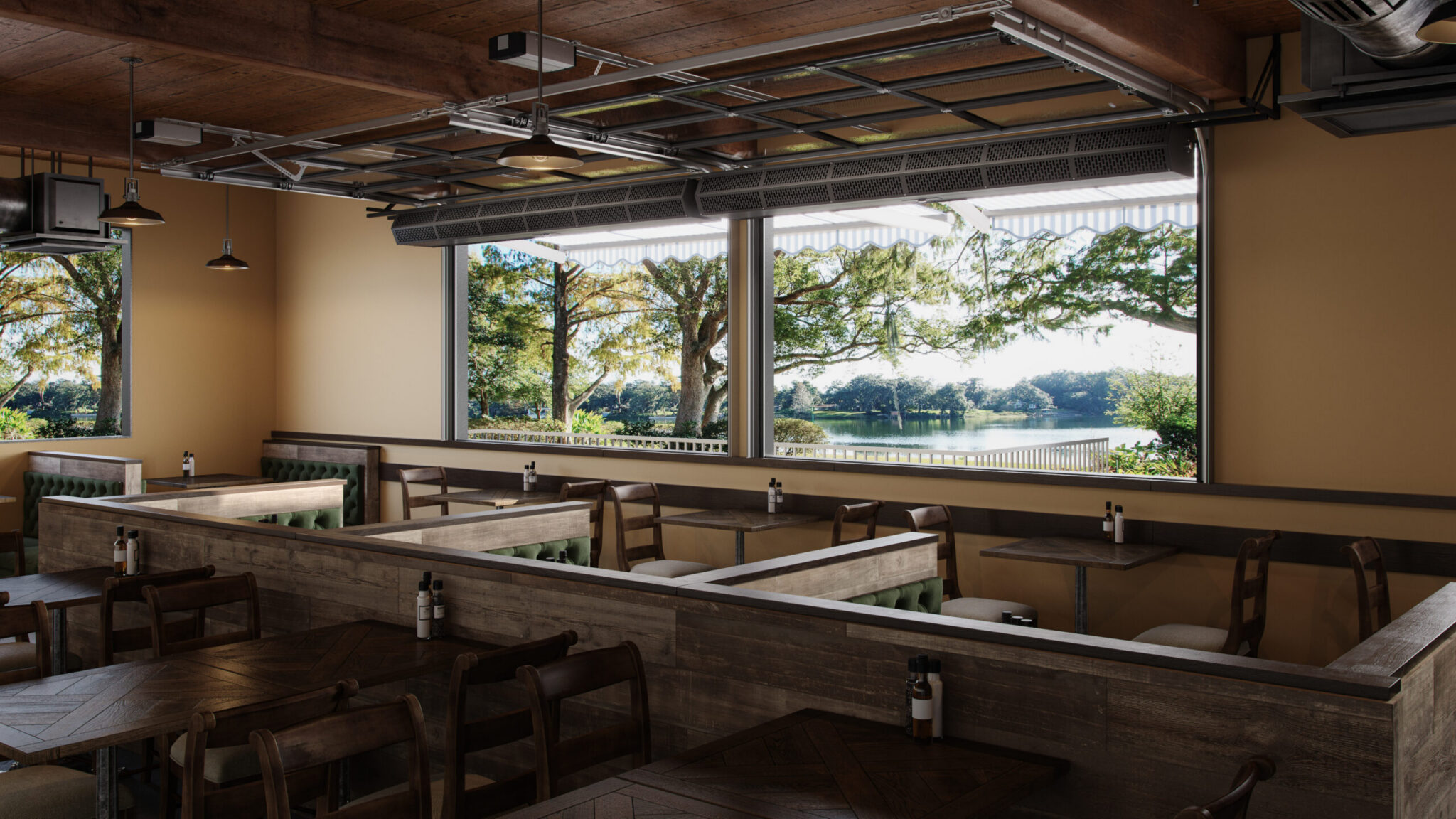

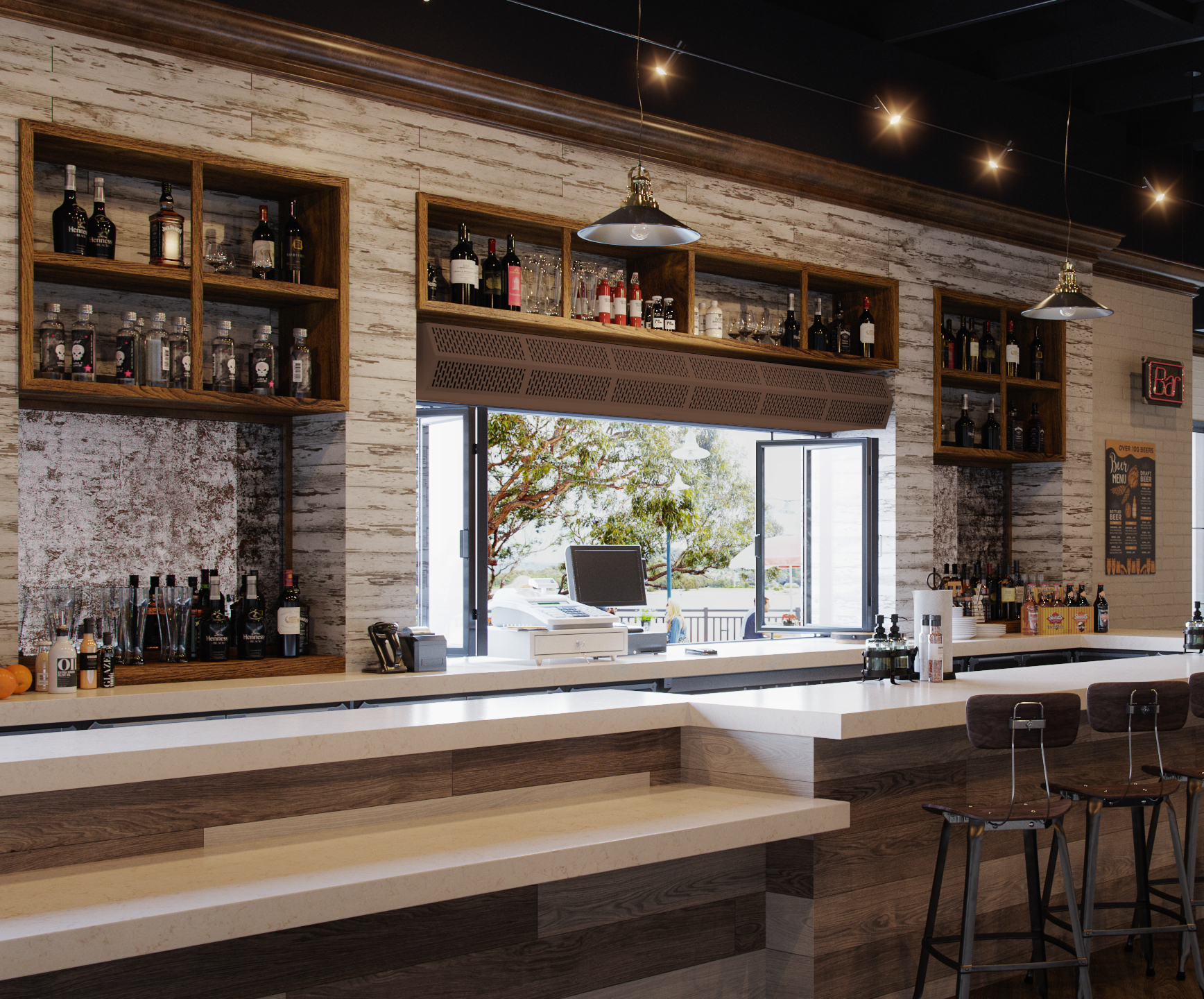

The Berner Pass-Thru 6 air curtain, used by restaurants, bars, and cafes for pass-thru windows where insect control is desired along with fan speed control.

  • Variable speed control and options suitable for pass-thru windows, concession stands, and indoor/outdoor bar counters
  • Meets food service standards and health department requirements for flying insect control when the window is open
  • UL Outdoor Certified (ambient air curtains)
  • Simple to install, operate, and maintain
  • Made in U.S.A.

Available in single lengths from 25″ to 120″

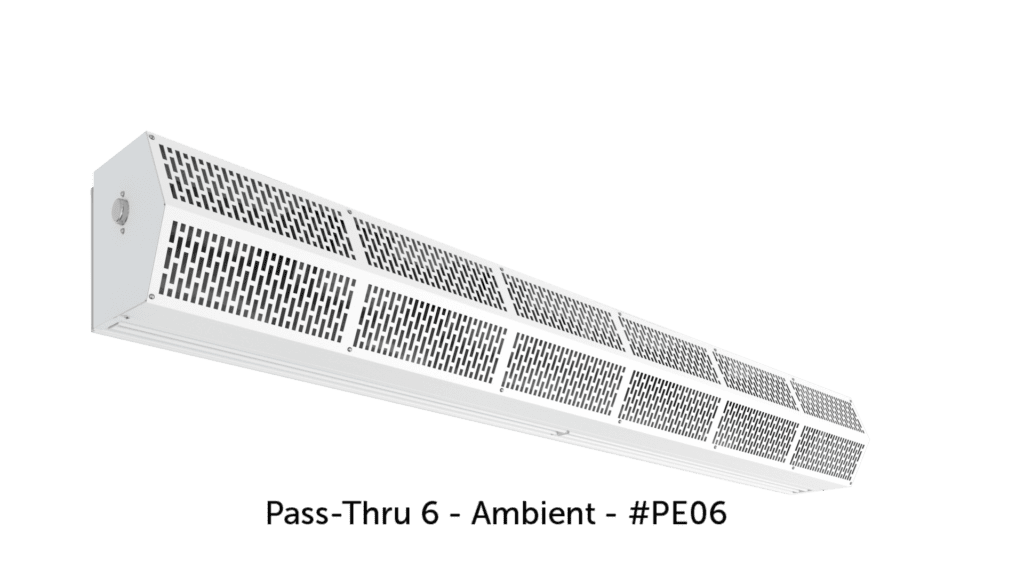

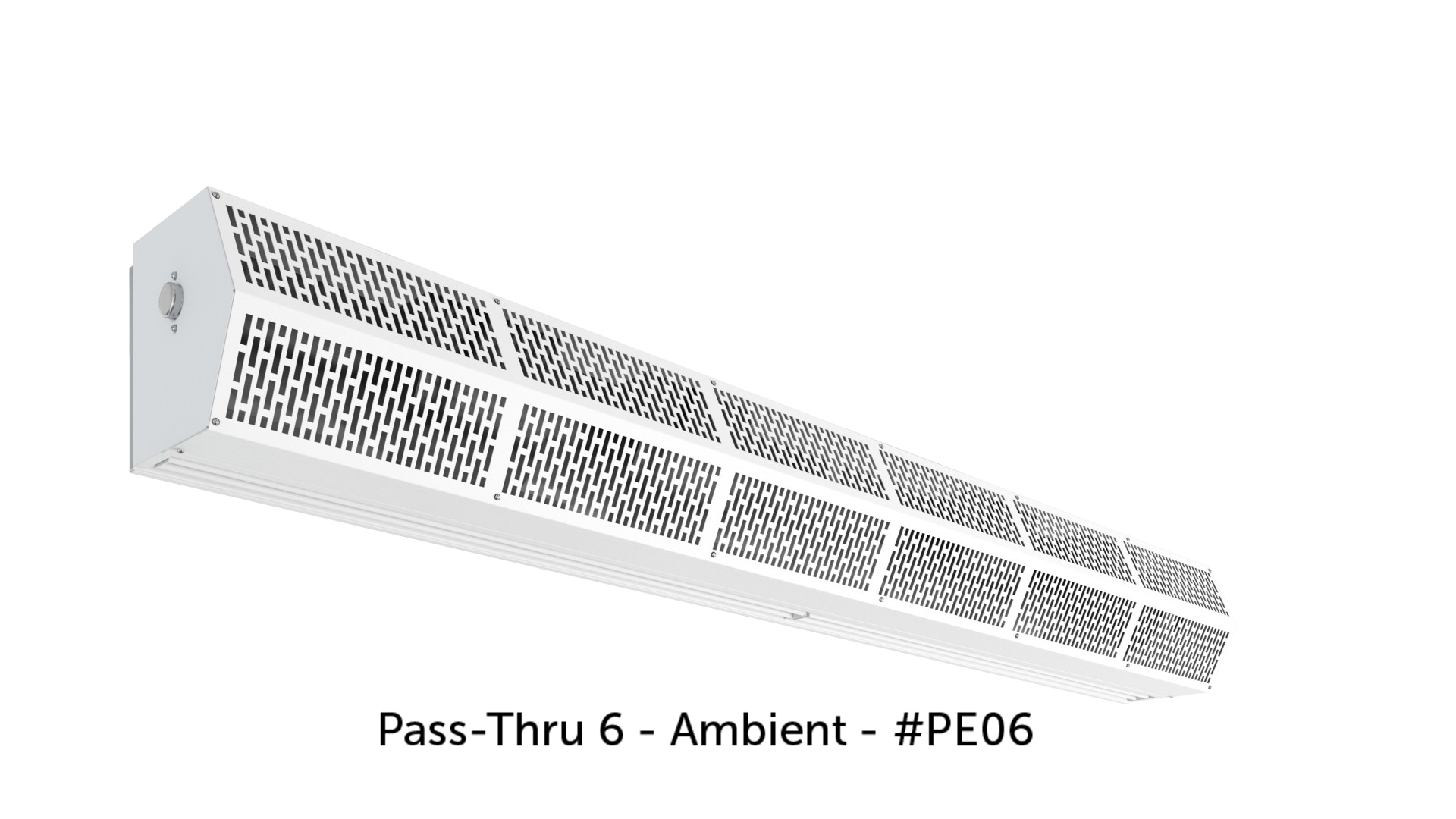

AMBIENT - PE06

UL Certified for Outdoor Use

  • 8½” high x 8½” deep
  • 1/5 hp variable speed motor(s)
  • Remote mounted rheostat variable speed switch – order separately
  • White or black powder coated exterior (Optional: Custom Color or Stainless)
  • Wall & Top Mounting
  • Optional: Filter (washable)

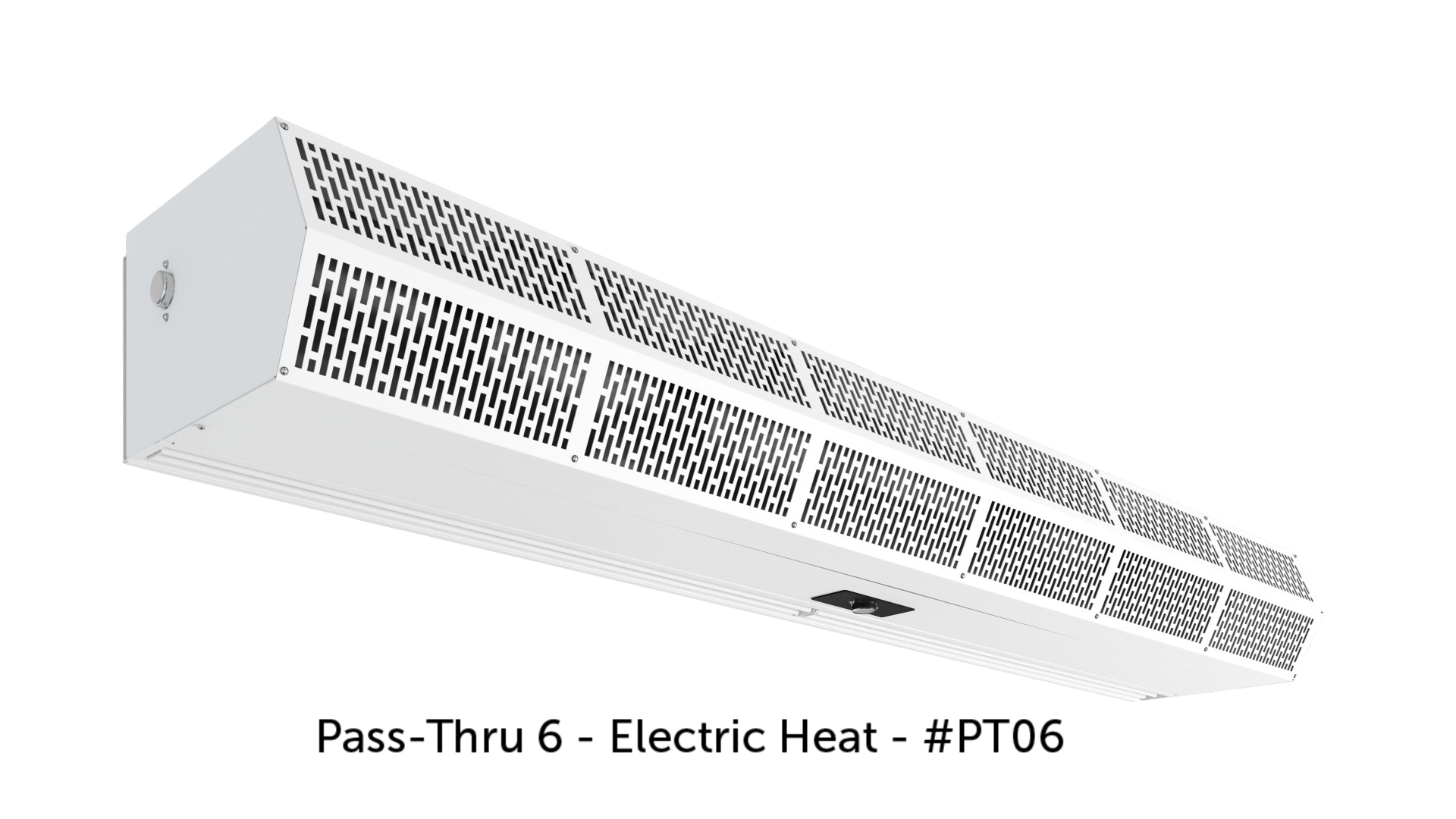

ELECTRIC HEAT - PT06

  • 8½” high x 13½” deep
  • 1/5 hp variable speed motor(s)
  • Factory installed rheostat variable speed switch
  • Factory installed heat on/off switch
  • White or black powder coated exterior (Optional: Custom Color or Stainless)
  • Wall & Top Mounting
  • Optional: Filter (washable)
  • Open helical element with point suspension
    • Thermal overload protection
    • Galvanized steel frame
  • Alternate kW available

Accessories

Basic Control Package

Recommended for openings where the window stays open for an extended period of time.

  • Air curtain turns on when door is opened and shuts off when door is closed.
  • Consists of a door switch (roller, plunger, or magnetic reed style) and line voltage, 24 volt control, or 120 volt control

Electrical Accessories:

  • Remote mounted rheostat variable speed switch
  • Disconnect Switch(es) – toggle disconnects based on number of power supplies required
  • Remote Thermostat & Locking Cover
  • Remote Temperature Sensor

Mechanical Accessories:

  • Includes wall mounting plate
  • Adjustable depth Z wall bracket
  • Tandem wall mounting bracket
  • Tandem mount performance kit
  • Transom wall brackets
