FEATURES

For mounting heights to 8′ (environmental separation) and 7′ (insect control)

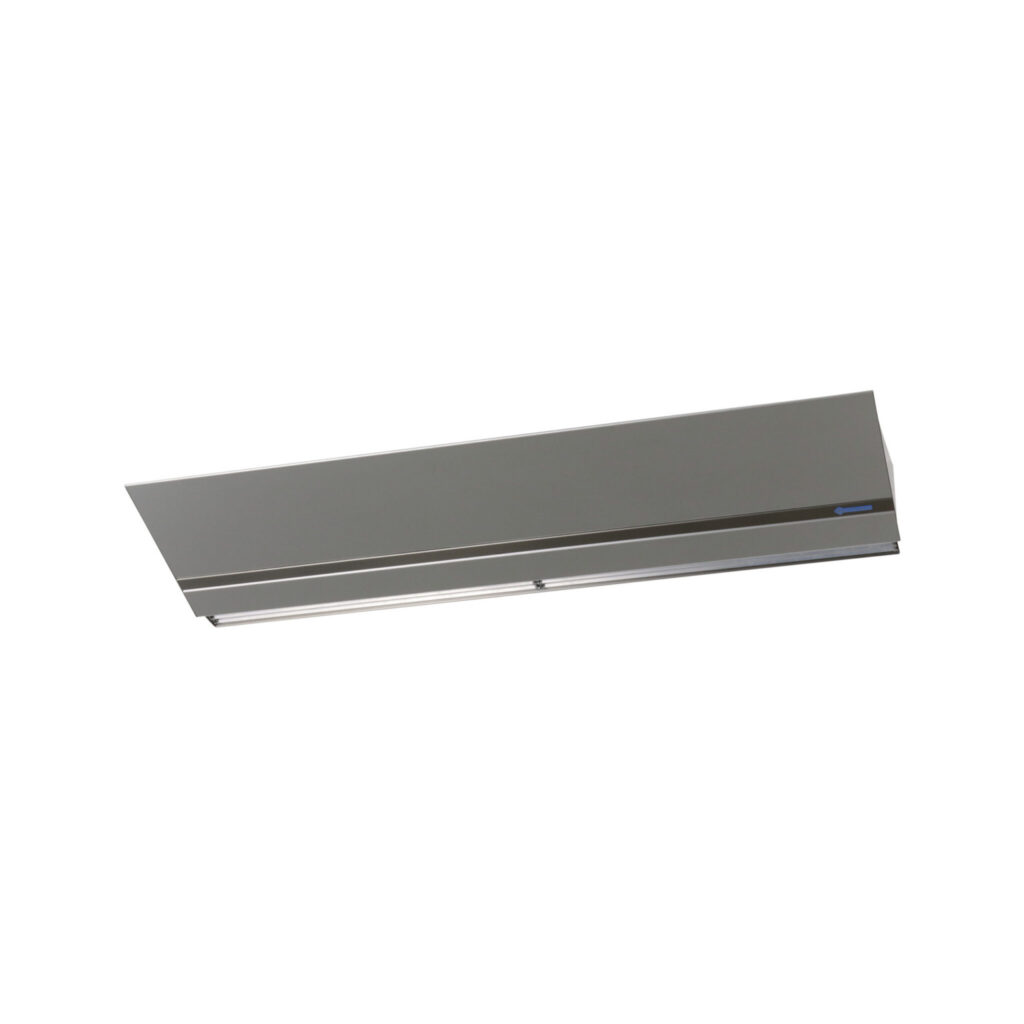

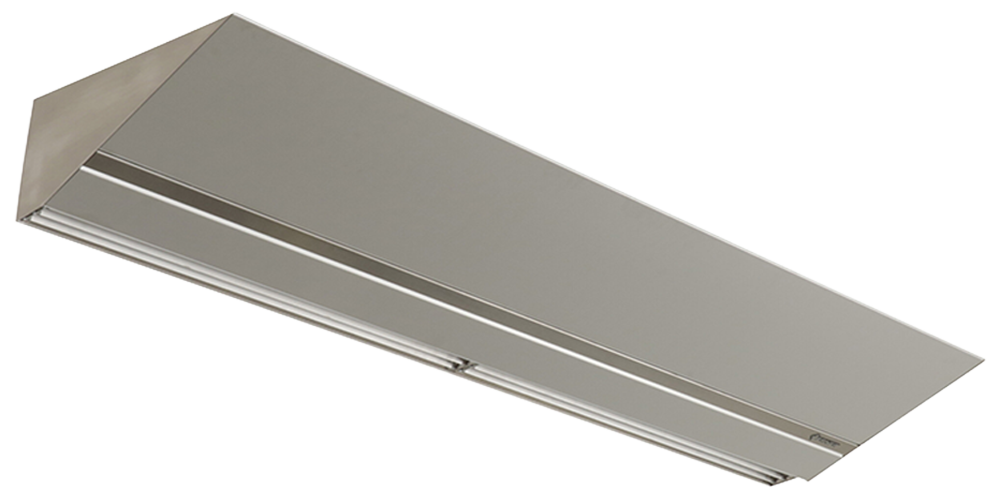

The Berner Architectural Elite 8 Air Curtain is the perfect solution when aesthetics matter.  They are designed for those who are looking for a seamless integration of beauty, function, and performance. Built on Berner’s strong engineering foundation, these air curtains save energy and protect the interior when the door is open.

  • AMCA certification for ambient, electric, and hot water heated models
  • Meets ASHRAE Standard 90.1-2019 and the IECC building code which allows AMCA certified air curtains as an alternative to vestibules
  • Quiet, technologically advanced, and beautifully designed
  • Simple to install, operate, and maintain
  • Made in the U.S.A.

Air curtains include EC Motors and Berner’s advanced control technology:

  • IntelliswitchTM digital controller
  • Berner Air™ – Smart controller & app, includes BACnet

Available in single lengths from 3′ to 10′

AMBIENT

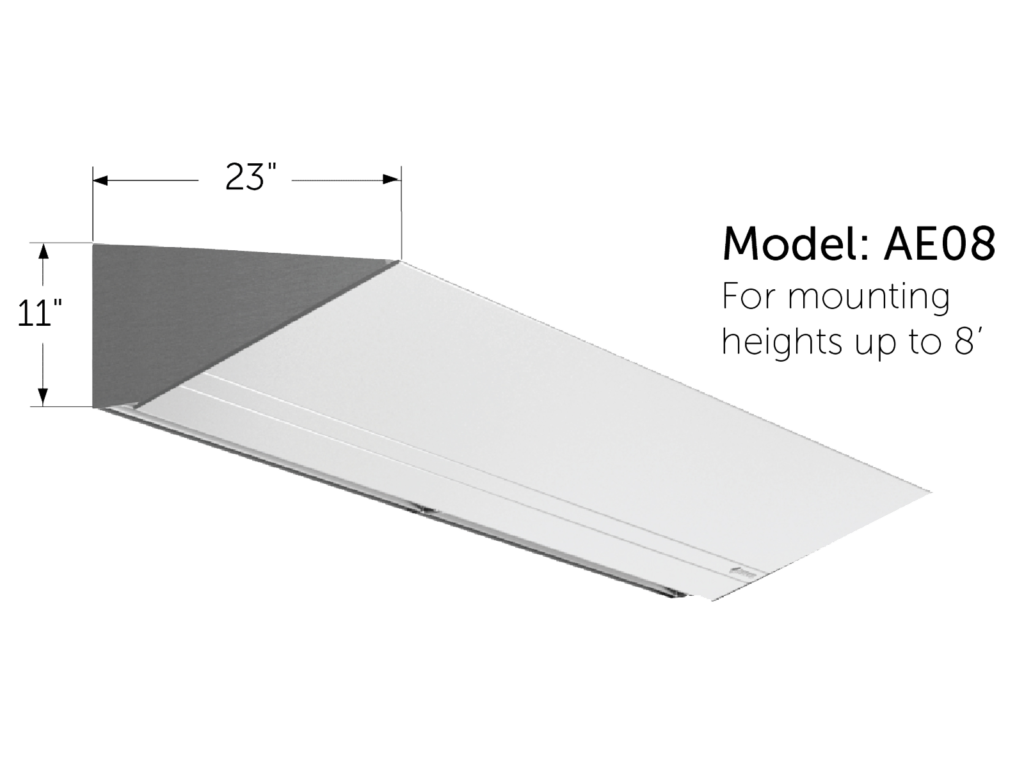

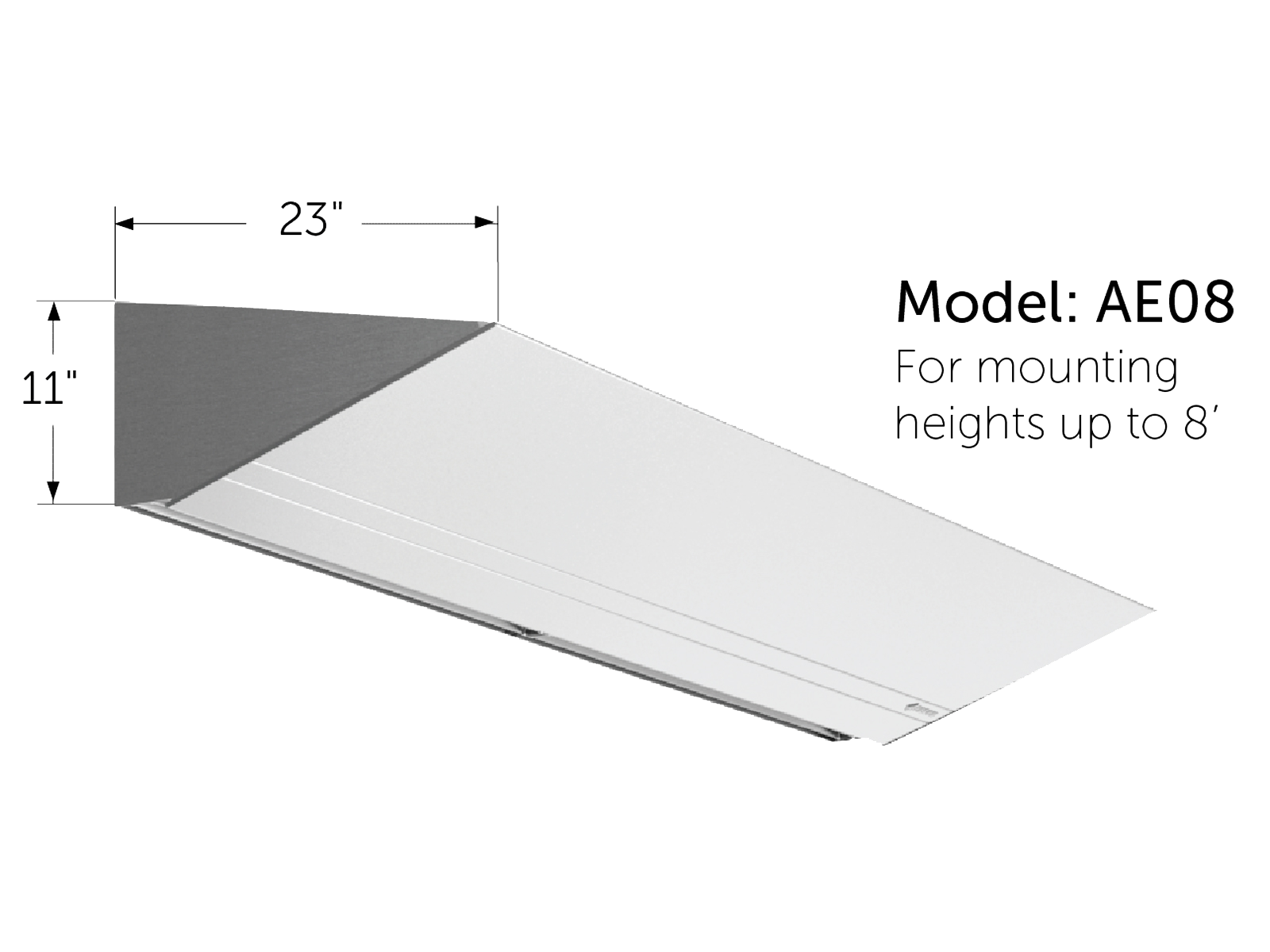

  • 11″ high x 23″ deep
  • ⅕ hp EC motor(s)
  • Intelliswitch™ digital controller – ten speeds
  • Berner AIR™: Smart controller & app, includes BACnet
  • Cabinet: Stainless Steel, grade 304 or better
  • Bottom panel: Clear satin anodized aluminum (Optional: White Aluminum, Custom Color, or Stainless)

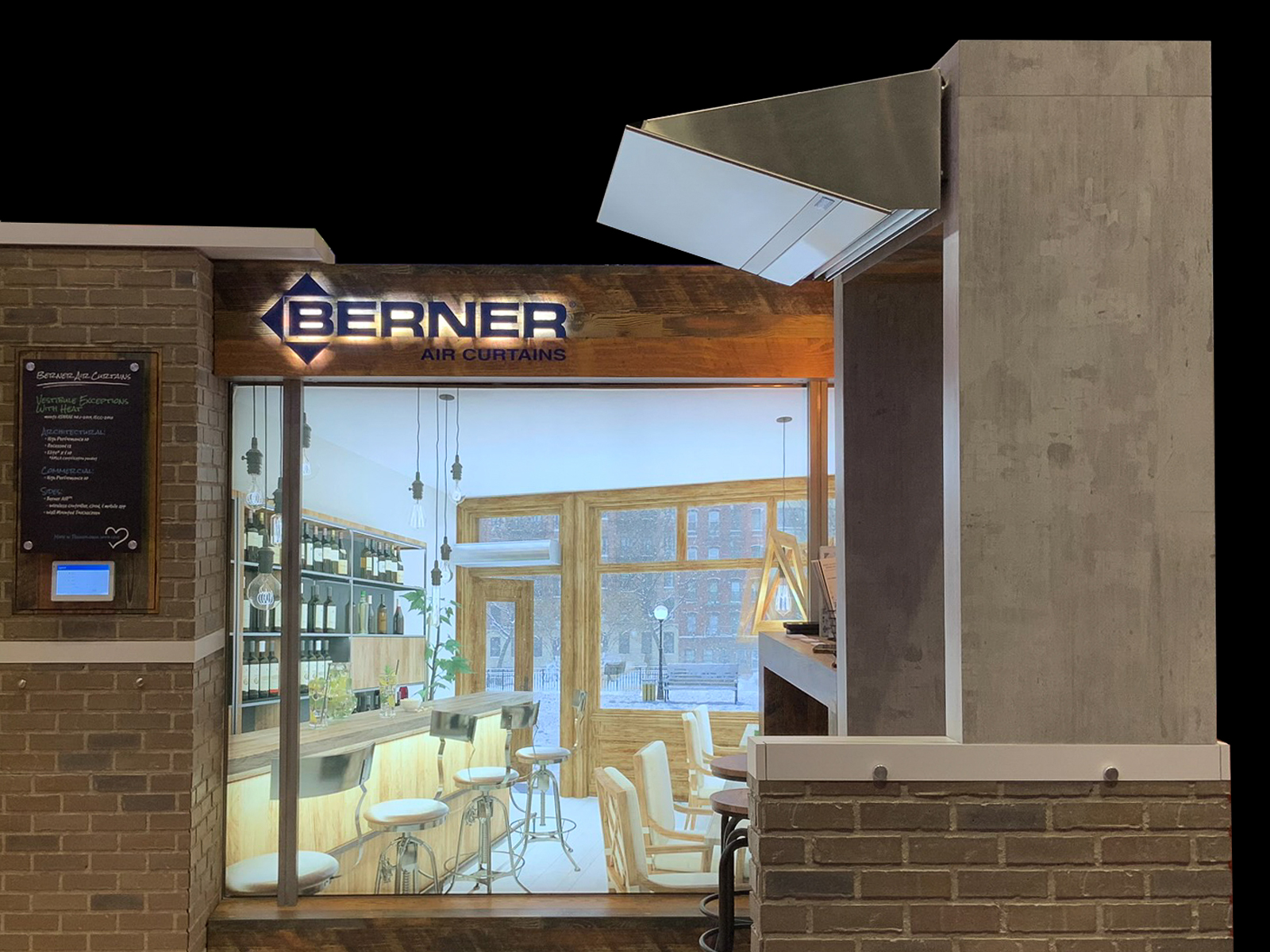

  • Wall or top mounting
  • High efficiency, low noise, articulating Pro-V Nozzle
  • Optional: Filter (washable)
  • Optional: Rear cover for top mounting to conceal fasteners

ELECTRIC HEAT

  • 11″ high x 23″ deep
  • ⅕ hp EC motor(s)
  • Intelliswitch™ digital controller – ten speeds
  • Berner AIR™: Smart controller & app, includes BACnet
  • Cabinet: Stainless Steel, grade 304 or better
  • Bottom panel: clear satin anodized aluminum (Optional: White Aluminum, Custom Color, or Stainless)
  • Wall or top mounting
  • High efficiency, low noise, articulating Pro-V Nozzle
  • Single-stage electric heater (open element)
  • Alternate kW
  • Optional: Filter (washable)
  • Optional: Rear cover for top mounting to conceal fasteners

HOT WATER

  • 11″ high x 23″ deep
  • ⅕ hp EC motor(s)
  • Intelliswitch™ digital controller – ten speeds
  • Berner AIR™: Smart controller & app, includes BACnet
  • Cabinet: Stainless Steel, grade 304 or better
  • Bottom panel: clear satin anodized aluminum (Optional: White Aluminum, Custom Color, or Stainless)
  • Wall or top mounting
  • High efficiency, low noise, articulating Pro-V Nozzle
  • Optional: Filter (washable)
  • Factory-installed coil
  • Optional: Rear cover for top mounting to conceal fasteners

Coil Features

  • Standard connection top, same end supply/return
  • Galvanized steel casing
  • ⅝” copper tube x .035″ wall
  • Aluminum fins
  • Leak tested at 450 psi

Accessories

Comes with Berner’s digital controller, the Intelliswitch™, and the Berner AIR™ built-in as standard. Requires a separate activation switch.

Berner Intelliswitch™

Standard
  • Pre-set programs
  • Simple custom programming
  • Ten speeds maintained +/- 5 rpm
  • Serial network connection available
  • External thermostat provision
  • Temperature probe (heated units only)
  • Low voltage circuit for unit activation (to connect with a Building Management System (BMS) or Automatic Door)
  • RoHS compliant

Berner AIR™ – Smart Controller & App

Standard
  • Enables wireless control of the air curtain(s) via the Berner App
  • Allows Intelliswitch™ to be programmed, operated & monitored via smartphone/tablet
  • Includes BACnet-IP support
  • Secure: best practices for cybersecurity protocols followed

Electrical Accessories

Optional
  • Magnetic Reed Door Switch – field mounted
  • Disconnect Switch(es) – toggle disconnects based on the number of power supplies required
  • Remote Thermostat & Locking Cover
  • Remote Temperature Sensor

Mechanical Accessories

Optional

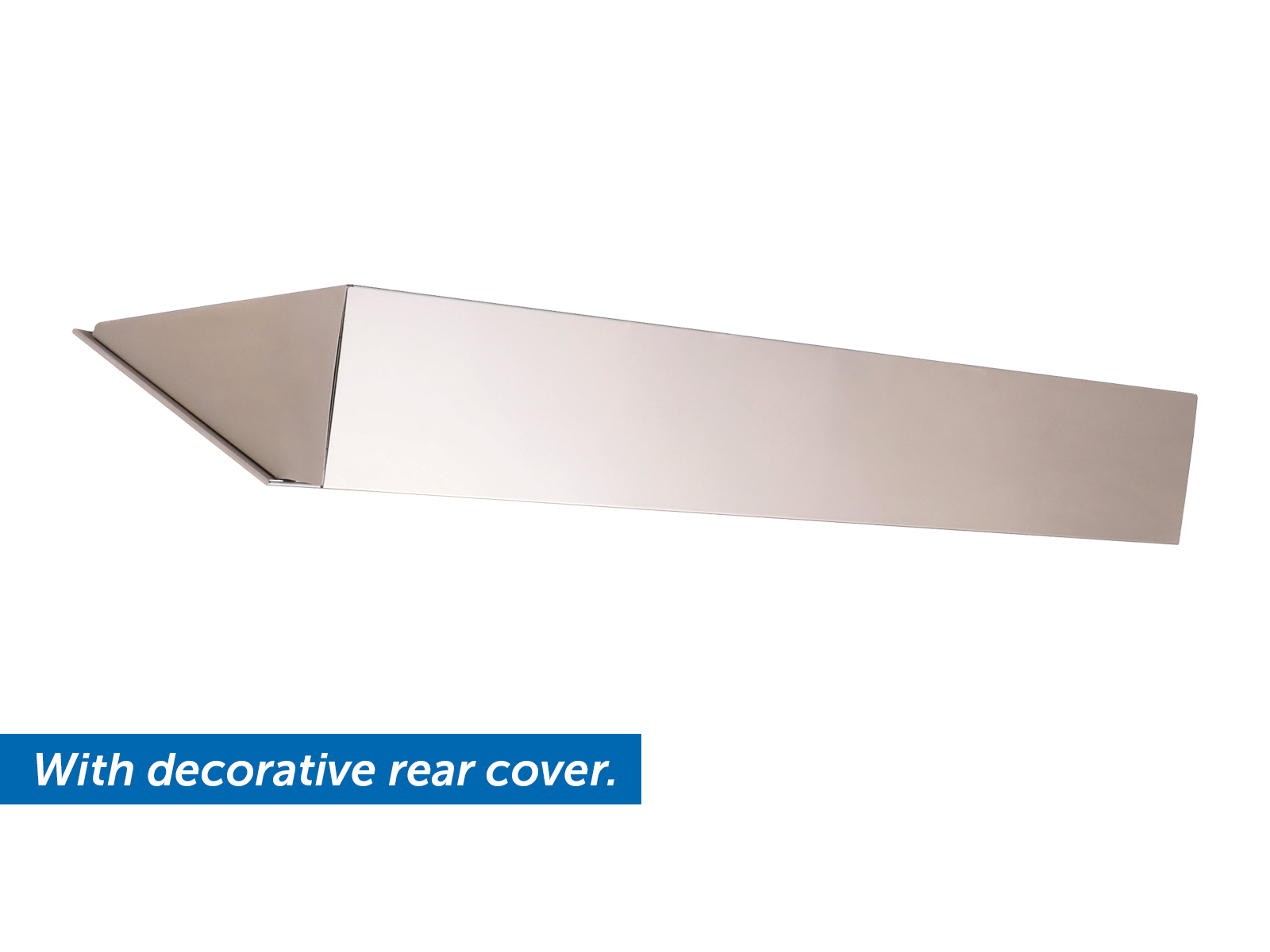

  • Decorative rear cover for top mounting to conceal fasteners
