Key Features

• Designed for seamless integration of aesthetics and performance.
• Standard construction includes EC motors and Berner Intelliswitch™.
• Built-in digital controller with touchscreen display and Berner AIR® smart control & app.
• Includes the Berner AIR® BMS Package with BACnet and Modbus integration capabilities.
• Saves energy and protects the interior when the door is open.
• AMCA certification for ambient, electric, and hot water heated models.
• Meets ASHRAE Standard 90.1-2019 and the IECC building code, which allows AMCA certified air curtains as an alternative to vestibules.
• Simple to install, operate, and maintain.
• Made in the U.S.A.

Specs & Mounting

• Vestibule Exception Compliance: up to 14 ft. AFF
• Optimal Environmental Separation: up to 10 ft. AFF
• Available in single lengths from 3 ft. to 12 ft.

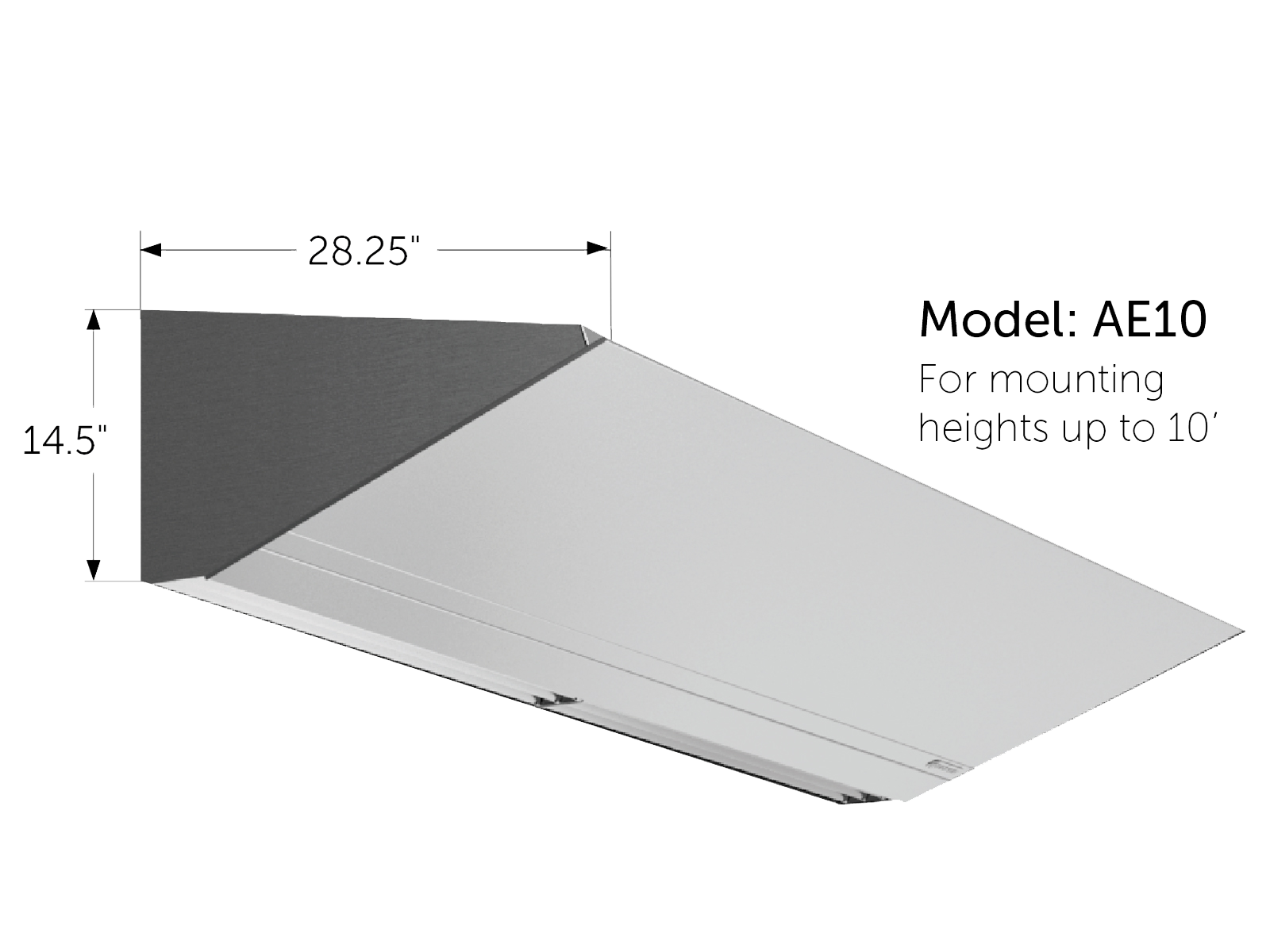

• 14  ½” high x 28 ¼” deep
• ½ hp EC motor(s)
• Intelliswitch™ digital controller, includes Berner AIR™ BMS (smart control and BACnet & Modbus)
• Cabinet: Brushed stainless steel, grade 304
• Bottom Panel: Clear satin anodized aluminum (optional: white aluminum, custom color, or stainless)
• Wall or top mounting
• High efficiency, low noise, articulating Pro-V Nozzle
• Filter (washable)
• 5 Year Limited Warranty
• Optional: Rear cover for top mounting to conceal fasteners

• 14  ½” high x 28 ¼” deep
• ½ hp EC motor(s)
• Intelliswitch™ digital controller, includes Berner AIR™ BMS (smart control and BACnet & Modbus)
• Cabinet: Brushed stainless steel, grade 304
• Bottom Panel: Clear satin anodized aluminum (optional: white aluminum, custom color, or stainless)
• Wall or top mounting
• High efficiency, low noise, articulating Pro-V Nozzle
• Patented single-stage venturi electric heater (open element)
• Alternate kWs available
• Filter (washable)
• 2 Year Limited Warranty
• Optional: Rear cover for top mounting to conceal fasteners

• 14  ½” high x 28 ¼” deep
• ½ hp EC motor(s)
• Intelliswitch™ digital controller, includes Berner AIR™ BMS (smart control and BACnet & Modbus)
• Cabinet: Brushed stainless steel, grade 304
• Bottom Panel: Clear satin anodized aluminum (optional: white aluminum, custom color, or stainless)
• Wall or top mounting
• High efficiency, low noise articulating Pro-V Nozzle
• Filter (washable)
• Factory-installed coil
• 2 Year Limited Warranty
• Optional: Rear cover for top mounting to conceal fasteners

Coil Features:

• Standard connection top, same end supply/return.
• Galvanized steel casing
• ⅝” copper tube x .035″ wall
• Aluminum fins
• Leak tested at 450 psi

Berner Intelliswitch™ – simple, smart, integrated

Standard

• Effortless & Flexible – choose from pre-set modes, adjust the motor speed, create a schedule, adjust the time delay, and more.
• Space heater setting and thermostat probe (heated units only)
• Serial network connection available
• External thermostat provision
• Low voltage circuit for unit activation (to connect with a Building Management System (BMS) or Automatic Door)
• RoHS compliant
• Follows best practices for cyber security protocols

Berner AIR™ BMS Package – for Building Management Systems

Standard

• Enables wireless control of the air curtain(s) via the Berner AIR® app
• Allows full integration of the air curtain with the Building Management System via:
  • BACnet-IP and BACnet-MS/TP
  • Modbus-TCP and Modbus-RTU
• Includes the Berner AIR® BASIC:
  • Enables wireless control of the air curtain(s) via the Berner App from anywhere in the world*
  • Allows Intelliswitch™ to be programmed, operated & monitored via smart phone / tablet
  • Includes weather based adaptive setting*
  • Allows for grouping (programming multiple air curtains)*
• Secure: best practices for cybersecurity protocols followed

*Requires on-site, secure internet enabled connection (provided by others).

Electrical Accessories

Optional

• Magnetic Reed Door Switch – field mounted
• Disconnect Switch(es) – toggle disconnects based on the number of power supplies required
• Remote Intelliswitch™ Touchscreen Display
• Remote Thermostat & Locking Cover
• Remote Temperature Sensor

Mechanical Accessories

Optional

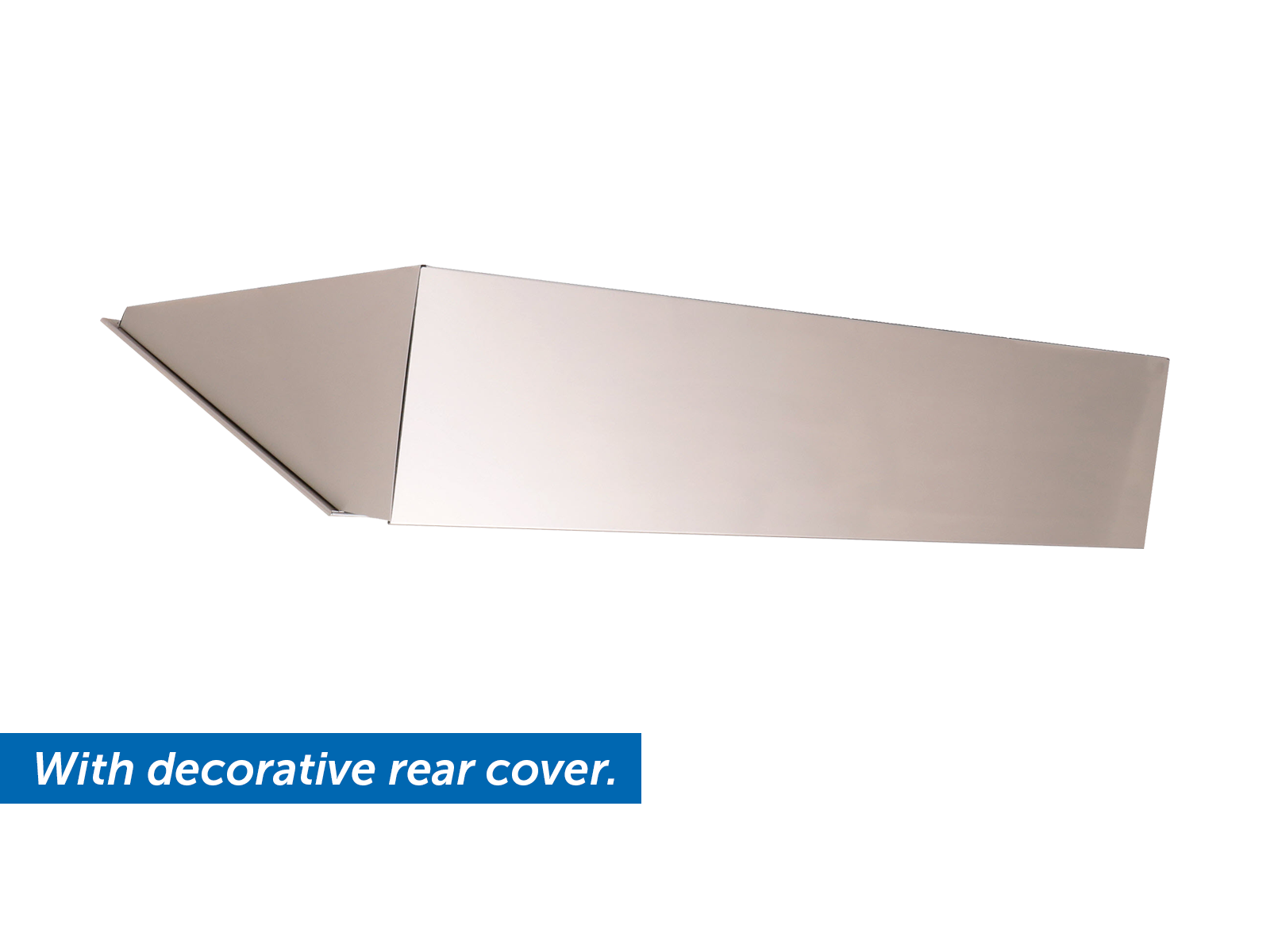

• Decorative rear cover for top mounting to conceal fasteners
