FEATURES

We are retiring this product line. Our new and improved version is the Architectural Icon 10 and it can be found here: https://berner.com/product/architectural-icon-10/





For mounting heights to 10′ (environmental separation) and 8′ (insect control).

The Berner Architectural High Performance 10 Air Curtain sleek design with a clear satin anodized aluminum exterior is chosen by designers who are concerned with both aesthetics and protecting the intent of the space when the door is open.

Standard: Berner’s built-in Intelliswitch™ digital controller
Optional: Berner AIR™ smart controller and app, includes BACnet

  • AMCA certified ambient, electric, steam & hot water heated models
  • Meets ASHRAE Standard 90.1-2019 and the IECC building code which allows AMCA certified air curtains as an alternative to vestibules

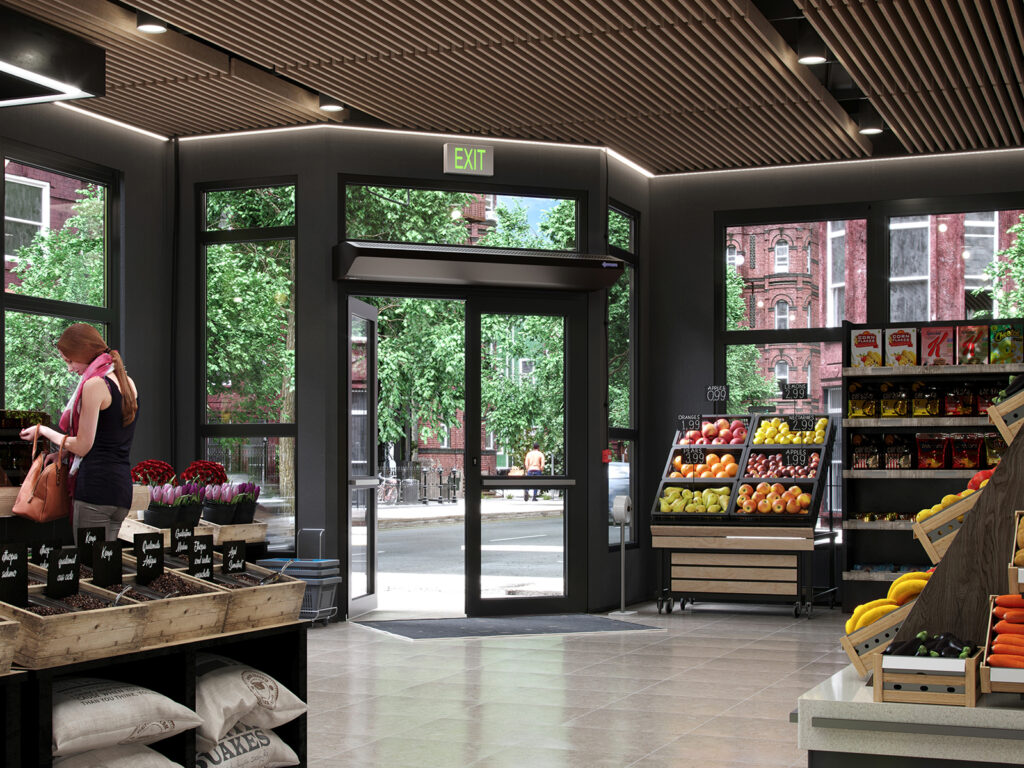

  • Used at entrances to enhance or replace a vestibule to save energy and maintain comfortable interiors

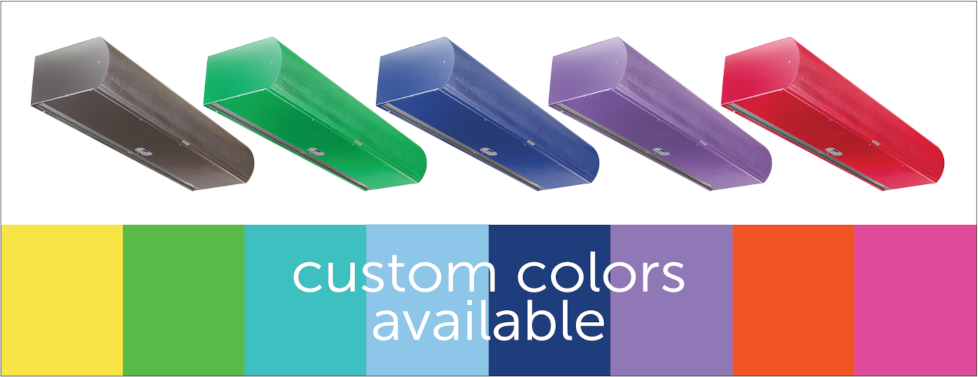

  • Custom colors or stainless steel also available.
  • Simple to install, operate, and maintain
  • Made in the U.S.A.

Available in single lengths from 3′ to 10′

AMBIENT

  • 12 ¼” high x 21 ¼” deep
  • ½ hp motor(s) – ten speeds
  • Factory installed Intelliswitch™ digital controller
  • Clear satin anodized aluminum exterior (optional: custom color, RAL colors 1000 to 9023 only, or stainless)
  • Wall and top mounting
  • High efficiency, low noise Pro-V Nozzle
  • Optional: Filter (washable)
  • Optional: Berner AIR (smart controller & app, includes BACnet)

ELECTRIC HEAT

  • 12 ¼” high x 21 ¼” deep
  • ½ hp motor(s) – ten speeds
  • Factory installed Intelliswitch™ digital controller
  • Clear satin anodized aluminum exterior (optional: custom color, bronze anodized, or stainless)
  • Wall and top mounting
  • High efficiency, low noise Pro-V Nozzle
  • Patented venturi open helical element with point suspension
  • Alternate KW available
  • Optional: Berner AIR (smart controller & app, includes BACnet)

STEAM/HOT WATER HEAT

  • 12 ¼” high x 21 ¼” deep
  • ½ hp motor(s) – ten speeds
  • Factory installed Intelliswitch™ digital controller
  • Clear satin anodized aluminum exterior (optional: custom color, bronze anodized, or stainless)
  • Wall and top mounting
  • High efficiency, low noise Pro-V Nozzle
  • Optional: Filter (washable)
  • Optional: Berner AIR (smart controller & app, includes BACnet)
Coil features:
  • Galvanized steel casing
  • ⅝” copper tube x .035″ wall
  • Aluminum fins
  • Leak tested at 450 psi

Accessories

This model comes with Berner’s digital controller, the Intelliswitch™, built-in and requires a separate activation switch.

Berner Intelliswitch™

Standard
  • Pre-set programs
  • Simple custom programming
  • Ten speeds maintained +/- 5 rpm
  • Serial network connection available
  • External thermostat provision
  • Temperature probe (heated units only)
  • Low voltage circuit for unit activation (to connect with a Building Automation System or Automatic Door)
  • Optional: remote mounted Display Kit



Berner AIR™ – Smart Controller & App

STANDARD
  • Enables wireless control of the air curtain(s) via the Berner App
  • Allows Intelliswitch™ to be programmed, operated & monitored via smartphone/tablet
  • Includes BACnet-IP support
  • Secure: best practices for cybersecurity protocols followed

Electrical Accessories

Optional
  • Berner AIR (smart controller & app, includes BACnet)
  • Magnetic Reed Door Switch
  • Disconnect Switch(es) – toggle disconnects based on the number of power supplies required.
  • Remote Thermostat & Locking Cover
  • Remote Temperature Sensor
  • Serial Connection Cable

Mechanical Accessories

Optional
  • Nozzle Extension for above ceiling installation
  • 1” Aluminum washable Air Inlet Filter – Factory mounted
  • Plunger door switch mounting bracket
