FEATURES
For mounting heights to 10′ (environmental separation) and 8′ (insect control)

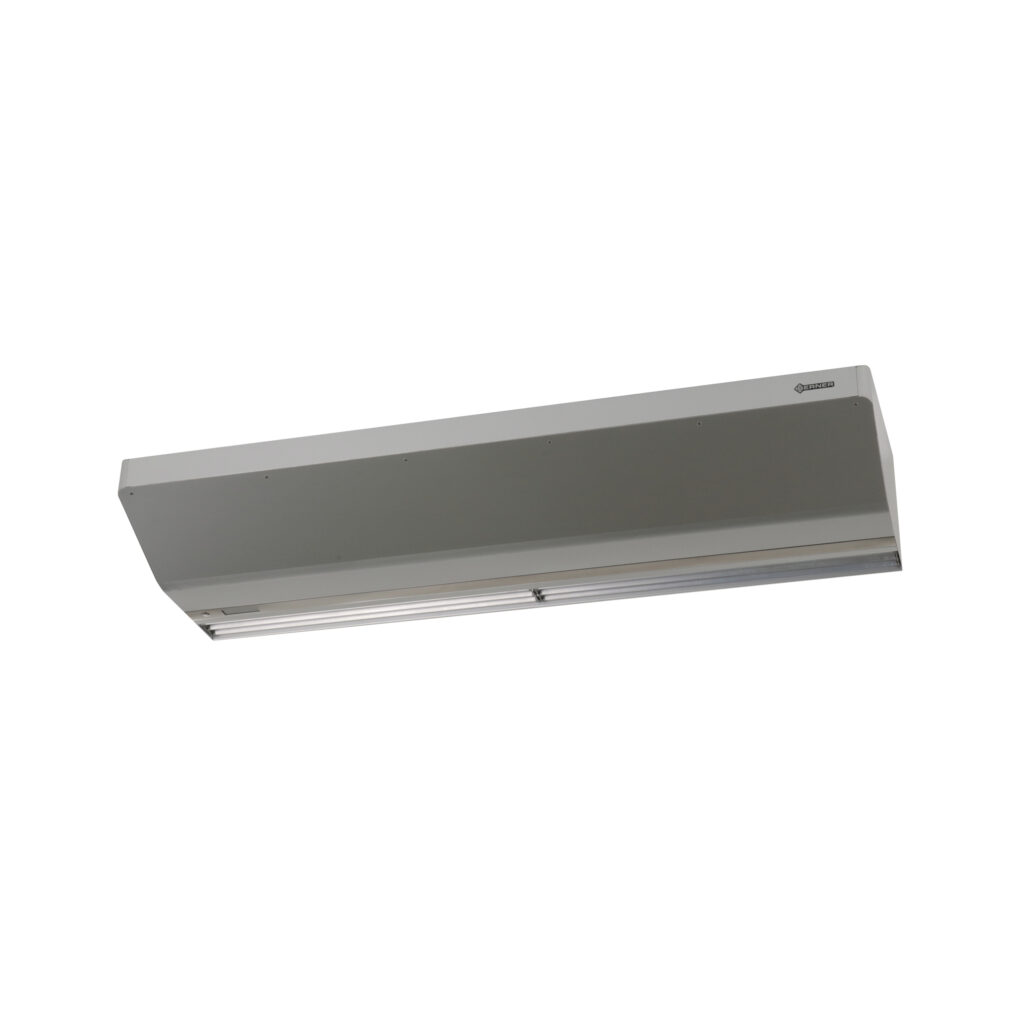

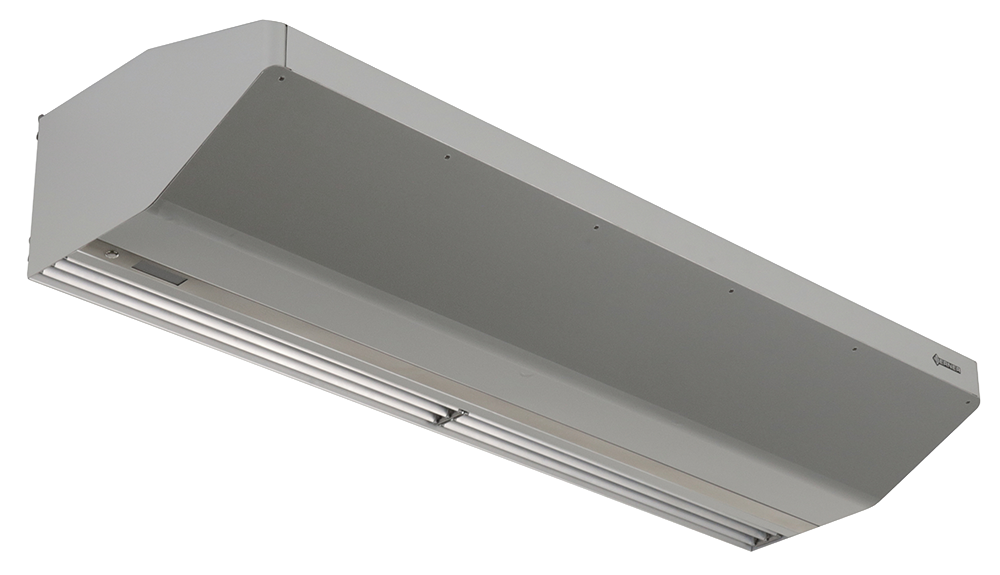

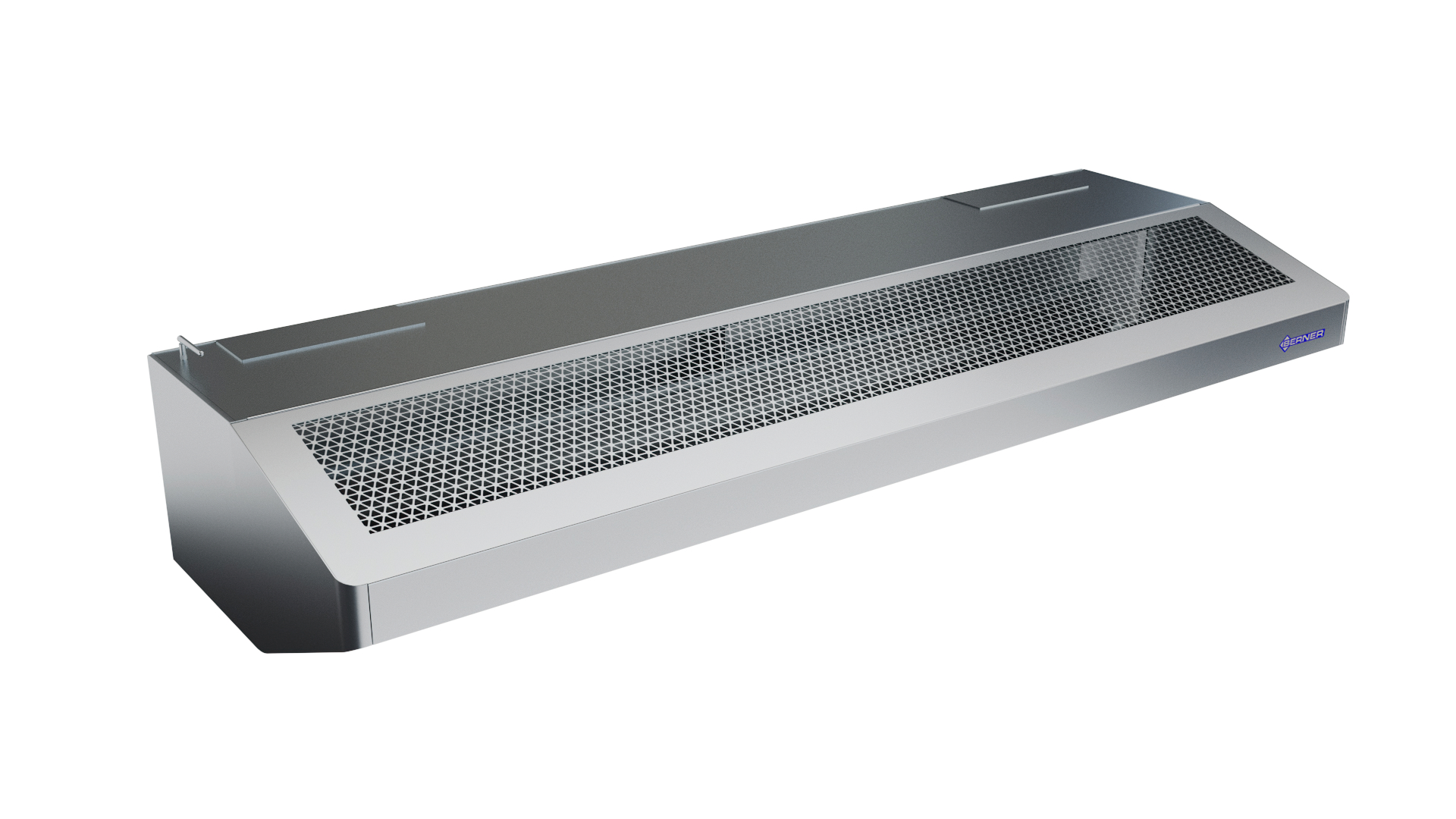

The Berner Architectural Contour 10 Air Curtain is the perfect solution when aesthetics matter. They are designed for those who are looking for a seamless integration of discreet, utilitarian, and lovely.
Includes Intelliswitch™ digital controller
- Low voltage circuit for unit activiation
- External thermostat provision
- Comfort Plus provision
- On heated unit, temperature probe
Built on Berner’s strong engineering foundation, these air curtains save energy and protect the interior when the door is open.
- Discreet, utilitarian, and lovely
- New quieter design
- Simple to install, operate, and maintain
- Made in the U.S.A.
Available in single lengths from 3′ to 12′
AMBIENT
- 12 3/4” high x 25 3/4” deep
- 1/2 hp motor(s) – ten speeds
- Factory installed Intelliswitch™ digital controller
- Clear satin anodized aluminum exterior (Optional: Custom Color or Stainless Steel)
- Wall or Top Mounting
- High efficiency, low noise, articulating Pro-V Nozzle
- Filter (washable)
- Parts Warranty: Five years
Options
- 1/2 hp EC motor(s) – ten speeds

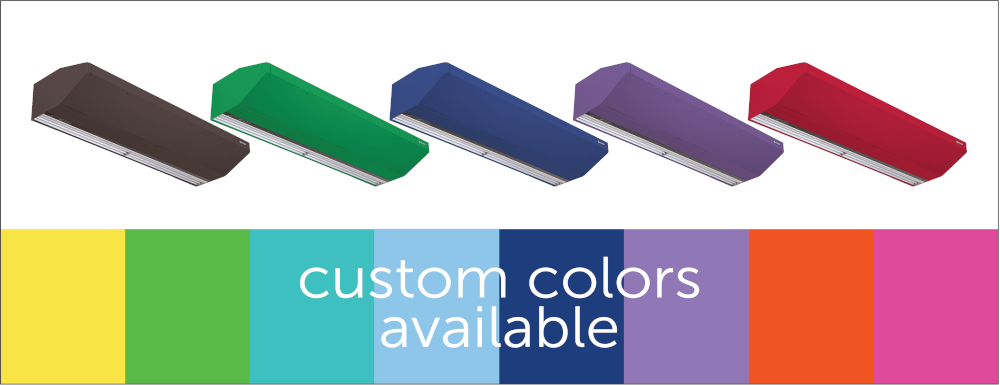

- Custom Color or Stainless Steel
- Rear cover for top mounting to conceal fasteners
- Berner AIR™ (smart controller & app, includes BACnet)
ELECTRIC HEAT
- 12 3/4” high x 25 3/4” deep
- 1/2 hp motor(s) – ten speeds
- Factory installed Intelliswitch™ digital controller
- Clear satin anodized aluminum exterior (Optional: Custom Color or Stainless Steel)
- Wall or Top Mounting
- High efficiency, low noise, articulating Pro-V Nozzle
- Patented single stage Venturi electric heater (open element)
- Alternate kWs available
- Filter (washable)
- Parts Warranty: Five years
Options
- 1/2 hp EC motor(s) – ten speeds
- Custom Color or Stainless Steel
- Rear cover for top mounting to conceal fasteners
- Berner AIR™ (smart controller & app, includes BACnet)
HOT WATER HEAT
- 12 3/4” high x 25 3/4” deep
- 1/2 hp motor(s) – ten speeds
- Factory installed Intelliswitch™ digital controller
- Clear satin anodized aluminum exterior (Optional: Custom Color or Stainless Steel)
- Wall or Top Mounting
- High efficiency, low noise, articulating Pro-V Nozzle
- Factory installed coil
- Filter (washable)
- Parts Warranty: Five years
Options
- 1/2 hp EC motor(s) – ten speeds
- Custom Color or Stainless Steel
- Rear cover for top mounting to conceal fasteners
- Berner AIR™ (smart controller & app, includes BACnet)
Coil Features
- Standard connection top, same end supply/return
- Galvanized steel casing
- ⅝” copper tube x .035″ wall
- Aluminum fins
- Leak tested at 450 psi
Accessories
Berner Intelliswitch™
Included
- Pre-set programs
- Simple custom programming
- Ten speeds maintained +/- 5 rpm
- Serial network connection available
- External thermostat provision
- Temperature probe (heated units only)
- Low voltage circuit for unit activation (to connect with a Building Management System (BMS) or Automatic Door)
- RoHS compliant
Berner AIR™ – Smart Controller & App
Optional
- Enables wireless control of the air curtain(s) via the Berner App
- Allows Intelliswitch™ to be programmed, operated & monitored via smartphone/tablet
- Includes BACnet-IP support
- Secure: best practices for cybersecurity protocols followed
Mechanical Accessories
OPTIONAL
- Decorative rear cover for top mounting to conceal fasteners
Electrical Accessories.
Optional
- Magnetic Reed Door Switch – field mounted
- EC motors for additional efficiency
- Wall mounted tablet for touchscreen controls (requires Berner AIR)
- Disconnect Switch(es) – toggle disconnects based on the number of power supplies required
- Remote Thermostat & Locking Cover
- Remote Temperature Sensor
Downloads
REVIT Files - 3D Architectural Contour 10-Ambient
REVIT Files - 3D Architectural Contour 10-Electric Heat
REVIT Files - 3D Architectural Contour 10-Hot Water Heat
CAD Files 2D Architectural Contour 10-Ambient
CAD Files 2D Architectural Contour 10-Electric Heat
CAD Files 2D Architectural Contour 10-Hot Water Heat
