FEATURES
For mounting heights to 8′ (environmental separation) and 7′ (insect control)

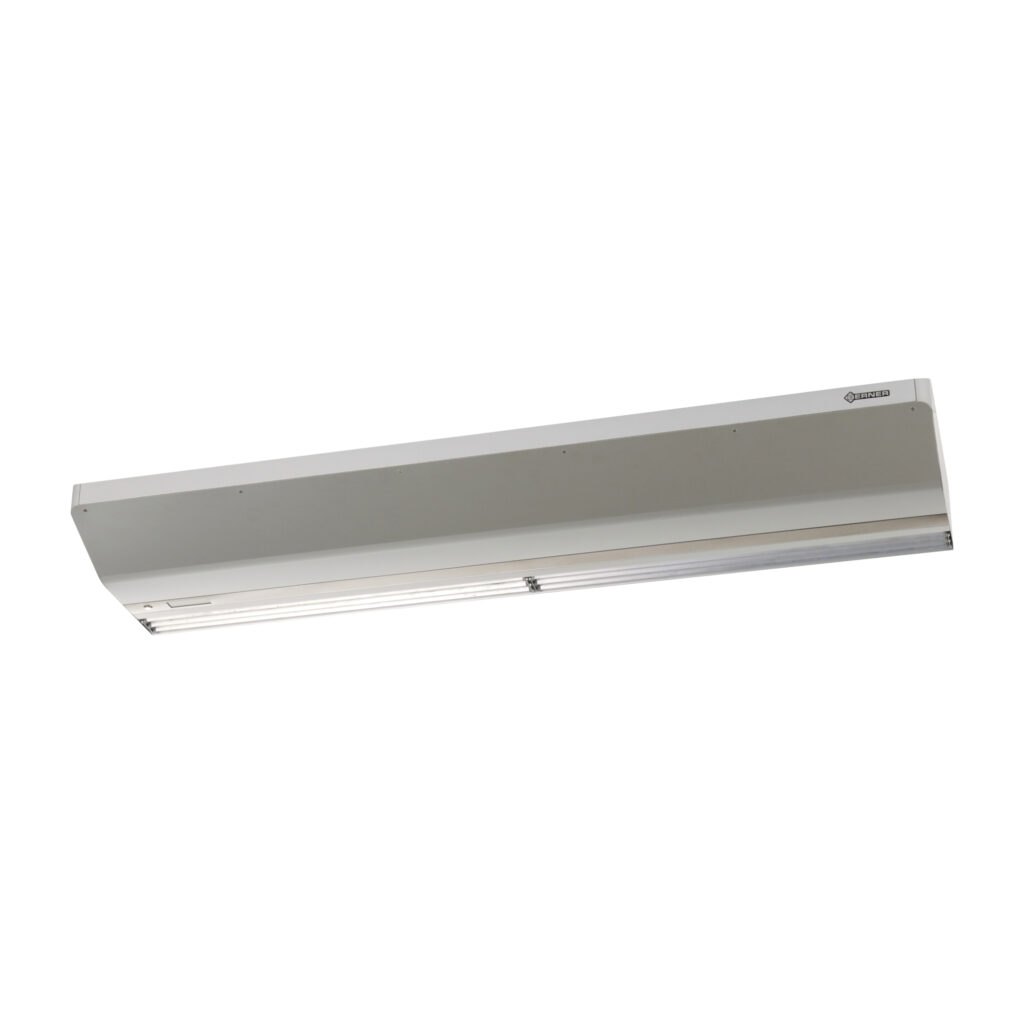

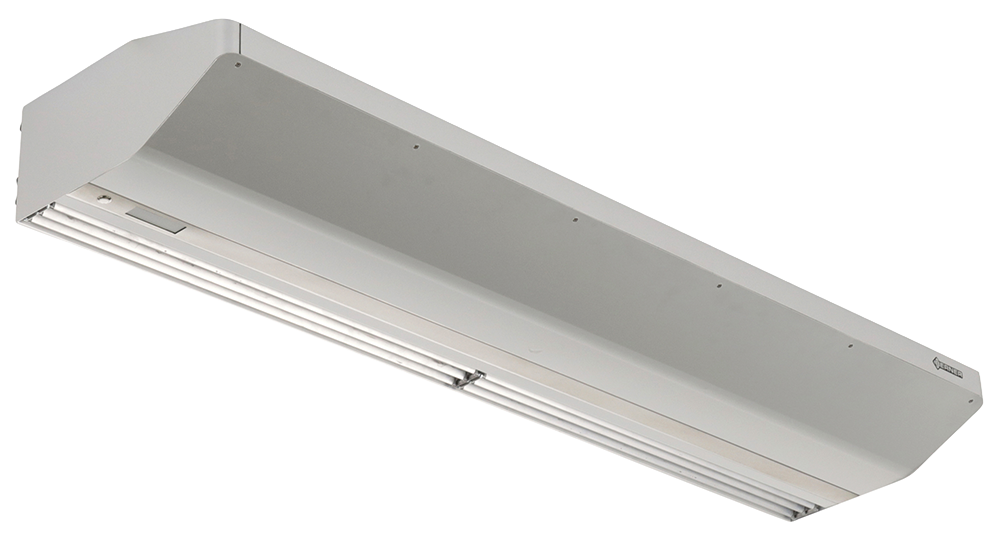

The Berner Architectural Contour 8 Air Curtain is the perfect solution when aesthetics matter. They are designed for those who are looking for a seamless integration of discreet, utilitarian, and lovely.
Includes Intelliswitch™ digital controller
- Low voltage circuit for unit activiation
- External thermostat provision
- Comfort Plus provision
- On heated unit, temperature probe
Built on Berner’s strong engineering foundation, these air curtains save energy and protect the interior when the door is open.
- Discreet, utilitarian, and lovely
- New quieter design
- Simple to install, operate, and maintain
- Made in the U.S.A.
Available in single lengths from 3′ to 10′
AMBIENT
- 8 ¼” high x 20” deep
- 1/5 hp motor(s) – ten speeds
- Factory installed Intelliswitch™ digital controller
- Clear satin anodized aluminum exterior (Optional: Custom Color or Stainless Steel)
- Wall or Top Mounting
- High efficiency, low noise, articulating Pro-V Nozzle
- Filter (washable)
- Parts Warranty: Five years
Options
- 1/5 hp EC motor(s) – ten speeds
- Custom Color or Stainless Steel
- Rear cover for top mounting to conceal fasteners
- Berner AIR™ (smart controller & app, includes BACnet)
ELECTRIC HEAT
- 8 ¼” high x 20” deep
- 1/5 hp motor(s) – ten speeds
- Factory installed Intelliswitch™ digital controller
- Clear satin anodized aluminum exterior (Optional: Custom Color or Stainless Steel)
- Wall or Top Mounting
- High efficiency, low noise, articulating Pro-V Nozzle
- Single stage electric heater (open element)
- Alternate kWs available
- Filter (washable)
- Parts Warranty: Five years
Options
- 1/5 hp EC motor(s) – ten speeds
- Custom Color or Stainless Steel
- Rear cover for top mounting to conceal fasteners
- Berner AIR™ (smart controller & app, includes BACnet)
HOT WATER HEAT
- 8 ¼” high x 20” deep
- 1/5 hp motor(s) – ten speeds
- Factory installed Intelliswitch™ digital controller
- Clear satin anodized aluminum exterior (Optional: Custom Color or Stainless Steel)
- Wall or Top Mounting
- High efficiency, low noise, articulating Pro-V Nozzle
- Factory installed coil
- Filter (washable)
- Parts Warranty: Five years
Options
- 1/5 hp EC motor(s) – ten speeds
- Custom Color or Stainless Steel
- Rear cover for top mounting to conceal fasteners
- Berner AIR™ (smart controller & app, includes BACnet)
Coil Features
- Standard connection top, same end supply/return
- Galvanized steel casing
- ⅝” copper tube x .035″ wall
- Aluminum fins
- Leak tested at 450 psi
Accessories

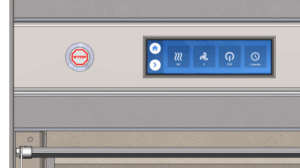

Berner Intelliswitch™
Included
- Pre-set programs
- Simple custom programming
- Ten speeds maintained +/- 5 rpm
- Serial network connection available
- External thermostat provision
- Temperature probe (heated units only)
- Low voltage circuit for unit activation (to connect with a Building Management System (BMS) or Automatic Door)
- RoHS compliant
Berner AIR™ – Smart Controller & App
Optional
- Enables wireless control of the air curtain(s) via the Berner AIR
- Allows Intelliswitch™ to be programmed, operated & monitored via smartphone/tablet
- Includes BACnet-IP support
- Secure: best practices for cybersecurity protocols followed
Mechanical Accessories
OPTIONAL
- Decorative rear cover for top mounting to conceal fasteners
Electrical Accessories
Optional
- Magnetic Reed Door Switch – field mounted
- EC motors for additional efficiency
- Wall mounted tablet for touchscreen controls (requires Berner AIR)
- Disconnect Switch(es) – toggle disconnects based on the number of power supplies required
- Remote Thermostat & Locking Cover
- Remote Temperature Sensor
Downloads
REVIT Files - 3D Architectural Contour 8- Ambient
REVIT Files - 3D Architectural Contour 8- Electric Heat
REVIT Files - 3D Architectural Contour 8- Hot Water Heat
CAD Files - 2D Architectural Contour 8-Ambient
CAD Files - 2D Architectural Contour 8-Electric Heat
CAD Files - 2D Architectural Contour 8-Hot Water Heat
